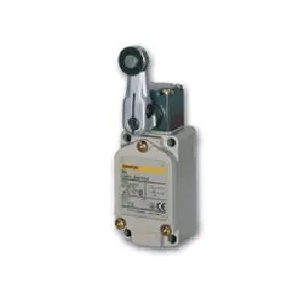

Omron WLCL-N Limit Switch
Omron WLCL-N Limit Switch uses an adjustable rod lever from 25 to 140 mm with screw terminals and a G½ conduit size. The switch is supplied without an operation indicator and has a listed pretravel value of 15±5°. Electrical characteristics include 50/60 Hz frequency, 25 mΩ max. initial contact resistance for the built-in switch, and 100 MΩ min. insulation resistance at 500 VDC. The model has IP67 protection, an operating temperature range of -10 to +80°C with no icing, and 35 to 95% RH. Vibration malfunction is specified at 10 to 55 Hz with 1.5 mm double amplitude. The WLCL-N belongs to the WL Series within the Omron Limit Switch range from Omron.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCL-N |
Omron WLCL-N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Terminal Shape | Screw terminals (Conduit size: G½) |
| Pretravel Pt | 15±5° |
| Indicator | Without operation indicator |
| Ambient Temperature | -10 to +80°C (with no icing) |
| Ambient Humidity | 35 to 95%RH |
| Shock Resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Actuator | Adjustable rod lever: (25 to 140 mm) |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Contact Resistance | 25 mΩ max. (initial value for the built-in switch) |
| Rated Frequency | 50/60 Hz |
The Omron WLCL-N Limit Switch uses an adjustable rod lever with a stated adjustment range of 25 to 140 mm. The connection format is screw terminals with a G½ conduit size, and the switch is supplied without an operation indicator. Its listed pretravel value is 15±5°. Electrical characteristics include 50/60 Hz frequency, 25 mΩ max. initial contact resistance for the built-in switch, and 100 MΩ min. insulation resistance at 500 VDC. These specifications identify the WLCL-N through its adjustable rod lever, screw-terminal configuration, conduit size, pretravel, indicator configuration, and the resistance values supplied for the built-in switch. The 25 to 140 mm value belongs to the adjustable rod lever specification and is separate from the 15±5° pretravel value.

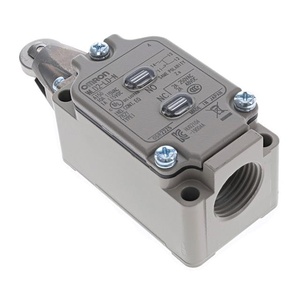

The WLCL-N carries IP67 protection and is specified for operation from -10 to +80°C with no icing and 35 to 95% RH. Malfunction vibration is listed at 10 to 55 Hz with 1.5 mm double amplitude. Shock specifications are 1,000 m/s² min. for destruction and 300 m/s² min. for malfunction. The actuator adjustment range, pretravel, electrical resistance, temperature, humidity, vibration, shock, and IP rating together provide the principal technical characteristics for this WL configuration. For another WL Series model using a top-roller plunger actuator, see the WLD2-N.
