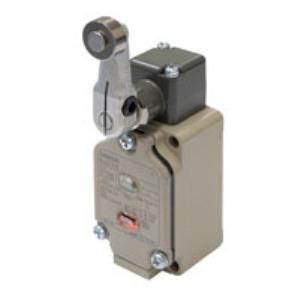

Omron WLCA2-7LD-N Limit Switch
Omron WLCA2-7LD-N is a standard-size WL Series limit switch with a roller lever and two-circuit configuration. It is rated at 10 A and uses a G1/2 connection without a ground terminal. IP67 protection is specified, while mechanical durability is ten million operations and electrical durability is 500,000 operations. The WLCA2-7LD-N belongs to the WL Series within the roller lever limit switch range from Omron. Its roller lever, two-circuit construction, 10 A rating, G1/2 connection, and no-ground-terminal specification provide the main model-level details. This specification combination separates it from connector-based WLCA2 roller-lever versions.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCA2-7LD-N |
Omron WLCA2-7LD-N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Type | Standard Size Limit Switch |
| Contact Configuration | Two-Circuit |
| Actuator Type | Roller Lever |
| Min Electrical Operations | 10000000 |
| Max Mechanical Operations | 500000 |
| Rated Load Current At 500 V Alternating Current Ac Voltage | 10 A |
| Operating Temperature | -10°C ~ 80°C |
| Operating Force | 1040gf |
| Release Force | 92gf |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Pretravel | 15° |
| Conduit Size | G1/2 without Ground Terminal |
| Overtravel | 70° |
| Differential Travel | 12° |
The Omron WLCA2-7LD-N Limit Switch is a standard-size WL Series model with a roller lever and two-circuit configuration. The structured data lists a 10 A rating, ten million mechanical operations, and 500,000 electrical operations. Operating temperature is specified from -10 to 80°C, and IP67 protection is listed. The connection field is G1/2 without a ground terminal. A 15° value, 70° value, and 12° value are also present in the source row, but only clearly identified specifications are emphasized. Two additional force values appear without visible field labels, so they are not interpreted as operating or release force.
The product is therefore best identified through the WL Series, standard-size limit switch format, roller-lever actuator, two-circuit construction, 10 A rating, G1/2 connection without ground terminal, IP67 protection, and listed durability values. The source does not provide a clearly labelled contact form, contact resistance, insulation resistance, vibration value, shock value, or operation-indicator field for this row, so those specifications are not borrowed from other WL models. Keeping the content centred on these labelled attributes prevents adjacent WL specifications from being mixed into WLCA2-7LD-N. For a related standard-size WL Series roller-lever model with the same two-circuit classification, see WLCA2-7-N.
