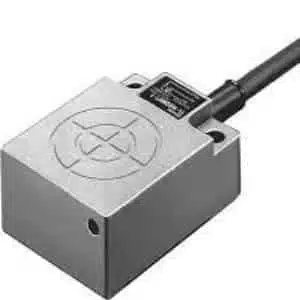

Omron TL-W20ME1 2M Proximity Sensor
Omron TL-W20ME1 2M is a flat inductive, unshielded proximity sensor with a 20 mm sensing distance and a 0 to 16 mm setting distance. It uses a DC 3-wire NPN output with NO operation through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 50 × 50 × 1 mm standard sensing object. Response frequency is 40 Hz minimum, current consumption is 8 mA at 12 VDC and 15 mA at 24 VDC, while differential travel ranges from 1% to 15% of sensing distance. A red detection indicator and IP67 protection are listed. The TL-W20ME1 2M is listed under flat inductive proximity sensors from Omron industrial sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | TL-W20ME1 2M |
Omron TL-W20ME1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Flat Inductive |
| Mounting | Unshielded |
| Sensing Distance | 20 mm |
| Setting Distance | 0 to 16 mm |
| Output Configuration | DC 3-wire, NPN |
| Operation Mode | NO |
| Connection | Pre Wired Cable Length 2M |
| Power Supply Voltage | 12 to 24 VDC. |
| Standard Target | Iron, 50 × 50 × 1 mm |
| Differential Travel | 1% to 15% of sensing distance |
| Detectable Object | Ferrous metal |
| Response Frequency | 40 Hz min. |
| Current Consumption | 8 mA at 12 VDC, 15 mA at 24 VDC |
| Indicator | Detection indicator (red) |
| Protection Circuit | Reverse polarity protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range |
| Degree Of Protection | IP67 |
| Weight | Approx. 210 g |
The Omron TL-W20ME1 2M Proximity Sensor uses a flat inductive, unshielded sensing structure with a 20 mm sensing distance and a 0 to 16 mm setting distance. It provides a DC 3-wire NPN output with NO operation through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 50 × 50 × 1 mm standard sensing object. Response frequency is 40 Hz minimum, current consumption is 8 mA at 12 VDC and 15 mA at 24 VDC, and differential travel ranges from 1% to 15% of sensing distance. A red detection indicator, reverse-polarity protection, and surge suppression are specified.
Operating and storage conditions for the TL-W20ME1 are -25 to 70°C without icing or condensation, with humidity from 35% to 95%. Temperature influence is ±10% max. of sensing distance at 23°C across -25 to 70°C. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 1,000 VAC for 1 minute, and voltage influence is ±2.5% max. within rated voltage ±10%. IP67 is the specified protection level. For another TL-W flat inductive sensor using a pre-wired 2 m cable and DC 3-wire NPN NO output but a shorter 5 mm sensing distance, see TL-W5MC1 2M.
