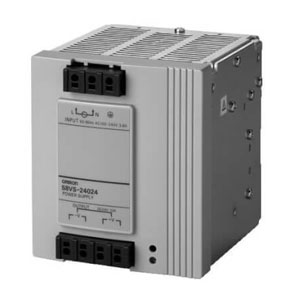

The Omron S8VS-24024 Power Supply provides 240 W of DC power with a 24 VDC output rated at 10 A for compatible industrial machine and control-panel equipment. Its 100 to 240 VAC input operates at 50/60 Hz, providing the electrical interface between the incoming AC source and connected 24 VDC loads. The DIN rail format enables structured installation inside control cabinets, while screw terminals provide secure input and output connections. Overload and short-circuit protection are incorporated to support the DC power circuit during operation. The S8VS-24024 identifies this 240 W configuration within the S8VS Series. At category level, it forms part of the 240W 24V power supply range from Omron control equipment used in industrial automation systems.
3.8 A max., 2.9 A typ. (at 100 VAC input)
2 A max., 1.5 A typ. (at 200 VAC input)
Input Leakage current
0.5 mA max. (at 100 VAC input)
1.0 mA max. (at 200 VAC input)
Input Frequency
50/60Hz
Output indicator
Yes (color: green)
Output voltage variable range
-10 to +15% With V.ADJ
Start-up time
540 ms typ. (at 100 VAC input)
230 ms typ. (at 200 VAC input)
Hold time
64 ms typ. (at 100 VAC input)
64 ms typ. (at 200 VAC input)
Vibration resistance
10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance
150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)
-10 to 60 ?
Ambient temperature (Storage)
-25 to 65 ?
Ambient humidity (OperatingStorage)
25 to 85%
Cooling fan
No
Weight
1150 g max.
The Omron S8VS-24024 is frequently evaluated with other models in the Omron Switch Mode Power Supply group, as these SMPS units share similar behaviour in thermal response, wiring layout, load handling, and rated input characteristics. Analysing differences in power rating, output voltage behaviour, mounting format, rated input voltage, and continuous output current helps ensure voltage stability under diverse machine loads. The S8VS-24024 integrates smoothly into conveyors, dosing modules, electrical frames, and industrial panels where a dependable Omron SMPS Power Supply is required.
