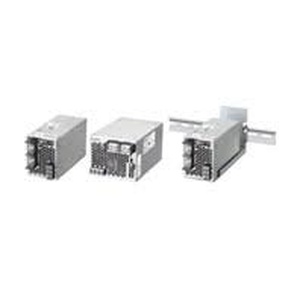

Omron S8JX-P30012N Power Supply
Omron S8JX-P30012N SMPS is a 300 W switch mode power supply designed to provide 12 VDC for industrial control equipment requiring higher output current. It delivers 27 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz, with an 80 to 370 VDC input range also specified. Front mounting supports fixed panel installation, while screw terminals and terminal blocks provide electrical connections for input and output wiring. Typical efficiency is specified at 77% with both 100 VAC and 200 VAC input. The 12 VDC output and 27 A capacity define this model as a higher-current 12 VDC configuration. Within the S8JX-P Series, the S8JX-P30012N provides a front-mount 300 W, 12 VDC configuration. Compare other 300W 12V power supplies from Omron industrial controls.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8JX-P30012N |
Omron S8JX-P30012N Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 300 W |
| Output voltage | 12 VDC |
| Rated output current | 27 A |
| Terminal type | Screw Terminal |
| Mounting method | Front mounting |
| Connection | Terminal blocks |
| Efficiency | 77% typ. (at 100 VAC input) 77% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 4.5 A max. (at 100 VAC input) 2.2 A max. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15% With V.ADJ |
| Start-up time | 1000 ms typ. (at 100 VAC input) 1000 ms typ. (at 200 VAC input) |
| Hold time | 20 ms min. (at 100 VAC input) 20 ms min. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | Yes |
| Weight | 1200 g max. |
The Omron S8JX-P30012N Power Supply provides 300 W rated power with a 12 VDC output and 27 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and can also operate from 80 to 370 VDC input. Front mounting, screw terminals, and terminal blocks define the installation and wiring arrangement for this configuration. Typical efficiency is specified at 77% with both 100 VAC and 200 VAC input. These electrical values define a higher-current 12 VDC supply where connected load voltage, current demand, source compatibility, panel space, and terminal access should be considered together. The connected equipment should require 12 VDC and keep combined current demand within the rated 27 A output. The available panel mounting space should therefore be checked before installation.
The incoming AC or DC range describes source compatibility separately from the 12 VDC requirement of connected loads, while screw terminals provide fixed wiring points. Comparing models from another voltage class should focus first on output-voltage compatibility and then on current capacity and rated power. A 24 VDC model is therefore not a direct substitute simply because it has the same 300 W rating. For a 300 W front-mount model delivering 24 VDC at 14 A, compare the Omron S8JX-P30024C.
