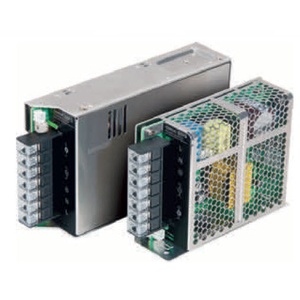

Omron S8FS-G05012CD Power Supply
Omron S8FS-G05012CD SMPS is a 50 W switch mode power supply configured to provide 12 VDC with a rated output current of 4.3 A. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals for structured electrical-panel installation. Typical efficiency is 84% with 100 VAC input and 86% with both 200 VAC and 230 VAC input. A green indicator provides output status during operation. The DIN rail format differentiates this model from direct-mount versions while retaining the same 12 VDC output class. Within the S8FS-G Series, the S8FS-G05012CD provides a DIN rail 50 W, 12 VDC configuration. Compare other 12V industrial power supplies from Omron automation.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G05012CD |
Omron S8FS-G05012CD Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 50 W |
| Output voltage | 12 VDC |
| Rated output current | 4.3 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 84 % typ.(at 100 VAC input) 86 % typ.(at 200 VAC input) 86 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 1.1 A typ.(at 100 VAC input) 0.62 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 11 ms typ.(at 100 VAC input) 60 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | No |
| Weight | 300 g max. |
The Omron S8FS-G05012CD Power Supply provides 50 W rated power with a 12 VDC output and 4.3 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals for control-panel installation. Typical efficiency is specified at 84% with 100 VAC input and 86% with both 200 VAC and 230 VAC input. A green indicator provides output status during operation. These specifications define a 12 VDC rail-mounted supply where load requirement, current capacity, input source, rail space, and terminal accessibility should be checked independently.
The connected equipment should require 12 VDC and remain within the 4.3 A rated output. DIN rail mounting requires available rail space, while screw-terminal wiring determines the connection arrangement. Keeping output voltage and mounting type constant provides a strong comparison of capacity differences. For a higher-capacity DIN rail model supplying the same 12 VDC output at 25 A from a 300 W rating, compare the Omron S8FS-G30012CD.
