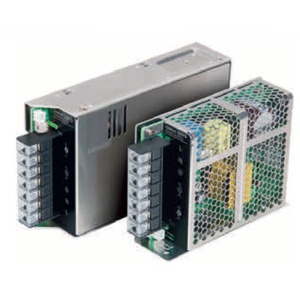

Omron S8FS-G03024CE Power Supply
Omron S8FS-G03024CE SMPS is a 30 W switch mode power supply configured to provide 24 VDC for industrial control equipment. It delivers 1.5 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz. Direct mounting supports fixed installation inside electrical panels, while the connector interface provides the electrical connection arrangement for this configuration. Typical efficiency is 86% with 100 VAC input, 88% with 200 VAC input, and 89% with 230 VAC input. A green indicator provides output status during operation. Within the S8FS-G Series, the S8FS-G03024CE provides a direct-mount 30 W, 24 VDC configuration. Compare other 30W 24V SMPS models from Omron control products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G03024CE |
Omron S8FS-G03024CE Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 30 W |
| Output voltage | 24 VDC |
| Rated output current | 1.5 A |
| Terminal type | Screw Terminal |
| Mounting method | Direct Mounting |
| Connection | Connector |
| Efficiency | 86 % typ.(at 100 VAC input) 88 % typ.(at 200 VAC input) 89 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 0.72 A typ.(at 100 VAC input) 0.43 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 10 ms typ.(at 100 VAC input) 55 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | No |
| Weight | 250 g max. |
The Omron S8FS-G03024CE Power Supply provides 30 W rated power with a 24 VDC output and 1.5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses direct mounting with a connector interface for panel installation. Typical efficiency is specified at 86% with 100 VAC input, 88% with 200 VAC input, and 89% with 230 VAC input. A green output indicator provides operating status. These specifications define a direct-mount 24 VDC configuration where output capacity, incoming AC supply, mounting arrangement, and connection type form the primary selection context.
The connected load should operate from 24 VDC and remain within the 1.5 A current rating. Direct mounting requires suitable panel surface, while connector compatibility should be checked as part of the wiring arrangement. A different nominal voltage should be treated as a different electrical requirement even when the total wattage is similar. For comparison with another 30 W configuration that changes the output to 5 VDC and increases current to 6 A with DIN rail mounting, compare the Omron S8FS-G03005CD.
