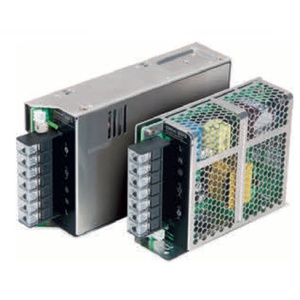

The Omron S8FS-G01515CD Power Supply delivers a 15 VDC output and 1 A rated current from a 15 W switch mode power supply designed for industrial electrical installations. A 100 to 240 VAC input range at 50/60 Hz allows the unit to convert standard AC supply power into 15 VDC for compatible machine-control and interface devices. Unlike the direct-mount C version, this CD model uses DIN rail mounting, creating a different installation option for organized automation-panel layouts. Screw terminals provide secure electrical connections for input and output wiring. As a DIN rail 15 VDC variant, the S8FS-G01515CD strengthens the model relationship within the S8FS-G power supply family and links naturally with other DIN rail SMPS models from Omron factory automation.
0.32 A typ.(at 100 VAC input)
0.2 A typ.(at 200 VAC input)
Input Leakage current
0.5 mA max.(at 100 VAC input)
1 mA max.(at 200 VAC input)
Input Frequency
50/60 Hz
Output indicator
Yes (color: green)
Output voltage variable range
-10 to +15 % (With V.ADJ)
Start-up time
1000 ms max.(at 100 VAC input)
1000 ms max.(at 200 VAC input)
Hold time
15 ms typ.(at 100 VAC input)
75 ms typ.(at 200 VAC input)
Vibration resistance
10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance
150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)
-20 to 70 ?
Ambient temperature (Storage)
-25 to 75 ?
Ambient humidity (OperatingStorage)
90 %RH max.
Cooling fan
No
Weight
250 g max.
The Omron S8FS-G01515CD is frequently assessed alongside related units in the Omron Switch Mode Power Supply range, as these SMPS models share comparable wiring behaviour, thermal characteristics, load endurance, and panel integration features. Engineers often evaluate related models such as Omron S8FS-C02512J (25 W, 15 VDC, 2.1 A, DIN rail) and Omron S8FS-G05015C (50 W, 15 VDC, 3.5 A, Direct Mounting) when configuring power rails for PLC racks, servo drives, motion assemblies, and distributed I/O terminals. Comparing specifications like power rating, output voltage behaviour, continuous output current, and mounting orientation helps maintain predictable voltage delivery across machinery with dynamic load patterns. The S8FS-G01515CD fits smoothly into conveyors, dosing modules, electrical frames, and compact control panels where a dependable Omron SMPS Power Supply is required. These related SMPS variants also support unified wiring layouts, easier spare handling, and consistent power distribution across multi-panel automation systems.
