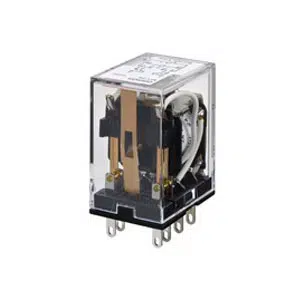

MY2 DC24: Omron MY2 24VDC Relay
The technical specifications for the Omron MY2 24VDC Relay MY2 DC24:
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Contact form: DPDT
- Mounting method: Socket
- Coil resistance: 662 Ω
- Maximum voltage: 110 % (23 ℃)
- Coil ratings: 24 VDC 36.3 mA
🛠️ Get Quotes Instantly from Omron Vendors
TANUPP INDIA
✔ Verified🌟 Trusted Vendor
Supplying in: Detecting...
Dhanalaxmi Electricals
✔ Verified🌟 Trusted Vendor
Supplying in: Detecting...
MKT Automation
✔ Verified🌟 Trusted Vendor
Supplying in: Detecting...
Omron MY2 24VDC Relay MY2 DC24 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 24 VDC 36.3 mA |
| Coil resistance | 662 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 10 % min. |
| Power consumption Operate / Release | Approx. 0.9 W |
| Contact rated load | 220 VAC 5 A (Resistive load) 220 VAC 2 A (Inductive load (cosφ = 0.4)) 24 VDC 5 A (Resistive load) 24 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 5 A DC: 5 A |
| Maximum switching power | 1100 VA (Resistive load) 440 VA (Inductive load (cosφ = 0.4)) 120 W (Resistive load) 48 W (Inductive load (L/R = 7 ms)) |
| Contact method | Single |
| Contact form | DPDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Ag |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
IndMALL Automation offers the Omron MY2 24VDC Relay MY2 DC24 at competitive prices. This DPDT relay features a closed type cover with plug-in terminals and is engineered for precision and reliability. The coil operates at 24 VDC 36.3 mA with a resistance of 662 Ω, consuming approximately 0.9 W. Its contact ratings include 220 VAC 5A (resistive load) and 24 VDC 5A (resistive load).
With a maximum switching power of 1100 VA (resistive load) and 120 W (resistive load), it handles voltages up to 250 VAC or 125 VDC, ensuring dependable operation. Operating within a wide temperature range of -55°C to 70°C, this relay achieves a maximum frequency of 18,000 times/hour mechanically. Built with Ag contacts for superior conductivity, it offers a reset time of 20 ms max.
For your Omron MY2 24VDC Relay needs, rely on IndMALL Automation for unbeatable pricing and expert support.
