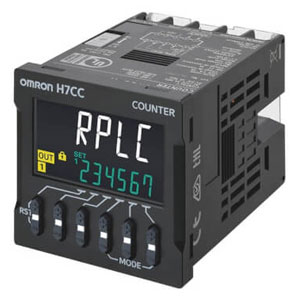

Omron H7CC-A Digital Counter
The Omron H7CC-A Counter supports 1-stage preset and total counting functions, operating on 100β240 VAC for consistent performance in industrial environments. Featuring screw-terminal wiring, it offers robust SPDT relay output, selectable 30 Hz or 10 kHz input speeds, and multiple UP/DOWN and quadrature input modes for high compatibility. Its 6-digit LCD ensures clear display visibility, while non-volatile memory preserves data during power interruptions. External, manual, and automatic reset modes provide operational flexibility. Manufactured by Omron and included in the Omron Counter lineup, this model is part of the reliable H7CC Series.
| Brand | Omron |
| Product Type | Counters |
| Model number | H7CC-A |
Omron H7CC-A Digital Counter - Technical Specifications
| Specification | Value |
|---|---|
| Classification | Preset counter |
| Configuration | β’ 1-stage preset counter β’ Total and preset counter |
| Power Supply Voltage | 100 to 240 VAC |
| Mounting Method | Flush mounting |
| External Connections | Screw terminals |
| input Signals | CP1, CP2, reset, and total reset |
| Counter Output Mode | N, F, C, R, K-1, P, Q, A, K-2, D, and L. |
| Outputs | Contact output (SPDT) |
| Digits | 6 digits -99999 to 999999 (-5 digits to +6 digits) |
| Operating voltage fluctuation range | 85% to 110% of rated supply voltage (12 to 48 VDC: 90% to 110%) |
| Degree of protection | IEC IP66 for panel surface only and only when Y92S-P6 Waterproof Packing is used |
| Maximum counting speed | 30 Hz (minimum pulse width: 16.7 ms) or 10 kHz (minimum pulse width: 0.05 ms) (selectable) (ON/OFF ratio 1:1) *Common setting for CP1 and CP2 |
| Counter Input mode | Increment (UP), decrement (DOWN), increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs)), UP/DOWN D (command input), UP/DOWN E (individual inputs), UP/DOWN E (quadrature inputs) |
| Auto-zero time/Startup time | 0.01 to 99.99 s |
| Sensor waiting time | External (minimum reset signal width: 1 ms or 20 ms, selectable), manual, and automatic reset (internal according to C, R, P, and Q mode operation) |
| Decimal point adjustment | Refer to the separate table for tachometer function ratings |
| Prescaling function | Yes (0.001 to 99.999) |
| Sensor waiting time | 290 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.) |
| Input method | No-voltage (NPN) input/voltage (PNP) input (switchable) No-voltage inputs: ON impedance: 1 kΞ© max. (Leakage current: 12 mA at 0 Ξ©) ON residual voltage: 3 V max. OFF impedance: 100 kΞ© min. Voltage input: High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΞ©) |
| External power supply | 12 VDC (Β±10%), 100 mA (except for H7CC-A8@ models) Refer to Precautions for Correct Use on page 61 for details |
| Control output | β’ Contact output: 3 A at 250 VAC/30 VDC, resistive load (cosΟ=1), Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value) β’ Transistor output: NPN open collector, 100 mA at 30 VDC, Residual voltage: 1.5 VDC max. (approx. 1 V), Leakage current: 0.1 mA max. |
| Display | 7-segment, negative transmissive LCD Character height Count value: 10 mm (white) Set value: 6 mm (green) |
| Memory backup | Non-volatile memory (overwrites: 100,000 times min.) that can store data for 10 years min. |
| Operating temperature range | -10 to 55Β°C (-10 to 50Β°C if Counter/Tachometers are mounted side by side) (with no icing or condensation) |
| Storage temperature range | -25 to 70Β°C (with no icing or condensation) |
| Operating humidity range | 25% to 85% |
| Case Color | Black (N1.5) |
Obtain a Quote for Omron Digital Led Counter, H7CC-A at economical prices. Specifications Overview for H7CC-A reveals Preset counter, 100 to 240 VAC, Approx. 6.8 VA, Flush mounting. It also includes Screw
terminals, CP1, CP2, reset, and total reset , N, F, C, R, K-1, P, Q, A, K-2, D, and L.. Take the First Step with a Quote for your requirement of Omron Digital Led Counter. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
