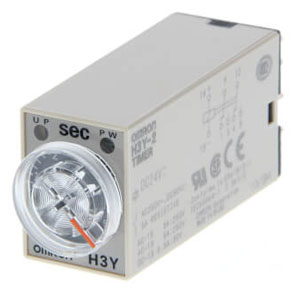

H3Y-2 AC200-230 120S: Omron AC 120S Timer
Technical Specifications of Omron AC 120S Timer H3Y-2 AC200-230 120S:
| Spec | Value |
|---|---|
| Rated power supply voltage | 200 to 230 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 1.8 VA (at 230 VAC) |
| Reset voltage | 10% min, of rated supply voltage |
Omron AC 120S Timer H3Y-2 AC200-230 120S Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 200 to 230 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 1.8 VA (at 230 VAC) |
| Reset voltage | 10% min, of rated supply voltage |
| Number of time ranges | 1 |
| Operation mode | Power ON-delay |
| Control output (Type) | Time-limit: DPDT |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1) Minimum applicable load: 1 mA at 5 VDC (failure level: P) |
| Operating resetting | Time-limit operation/Self-reset |
| Ambient humidity range | Operating: -10 to 50 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient temperature range | Operating: 35 to 85% |
| Accuracy of operating time | ±1% FS max. |
| Setting error | ±10% FS ±50 ms max. |
| Reset time | 0.1 s max. (including halfway reset) |
Please speak to our Technical Engineer for Omron AC 120S Timer, H3Y-2 AC200-230 120S at attractive prices. Technical Specs Summary of H3Y-2 AC200-230 120S includes 200 to 230 VAC 50/60 Hz, 85 to 110% of the power supply voltage, Approx. 1.8 VA (at 230 VAC), 10% min, of rated supply voltage, 1, Power ON-delay, Time-limit: DPDT & Time-limit operation/Self-reset. And Special Features Are 8-pin round socket, Beige & IP40. Match Your Needs with a Quote for your requirement of Omron AC 120S Timer. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
