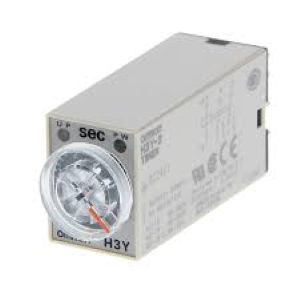

H3Y-2 AC100-120 5M: Omron AC 5M Timer
Technical Specifications of Omron AC 5M Timer H3Y-2 AC100-120 5M:
| Spec | Value |
|---|---|
| Rated power supply voltage | 100 to 120 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 1.5 VA (at 120 VAC) |
| Reset voltage | 10% min, of rated supply voltage |
Omron AC 5M Timer H3Y-2 AC100-120 5M Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 100 to 120 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 1.5 VA (at 120 VAC) |
| Reset voltage | 10% min, of rated supply voltage |
| Number of time ranges | 1 |
| Operation mode | Power ON-delay |
| Control output (Type) | Time-limit: DPDT |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1) Minimum applicable load: 1 mA at 5 VDC (failure level: P) |
| Operating resetting | Time-limit operation/Self-reset |
| Ambient humidity range | Operating: -10 to 50 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient temperature range | Operating: 35 to 85% |
| Accuracy of operating time | ±1% FS max. |
| Setting error | ±10% FS ±50 ms max. |
| Reset time | 0.1 s max. (including halfway reset) |
Get A Quote for Omron AC 5M Timer, H3Y-2 AC100-120 5M at the best price. Here are the brief Technical Specifications of H3Y-2 AC100-120 5M: Beige, 8-pin round socket, IP40, ±1% FS max., ±10% FS ±50 ms max., 0.1 s max. (including halfway reset), Operating: 35 to 85% & 100 to 120 VAC 50/60 Hz. And it offers 85 to 110% of the power supply voltage, Approx. 1.5 VA (at 120 VAC) & 10% min, of rated supply voltage. It's Time to get a Quote for your requirement of Omron AC 5M Timer. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
