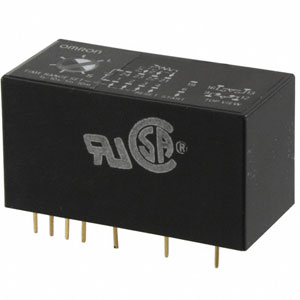

H3FA-SA DC5/6 - Omron Low DC 1min Solid-State Timer
The Omron H3FA-SA DC5/6 Timer is a compact Solid-state Timer designed to deliver dependable timing control using its four selectable time ranges. It operates in both Power ON-delay and Cumulative modes, providing flexibility for applications requiring simple, consistent timing functions. The unit features a Transistor output and supports a fast 10 ms max. reset time for efficient response in control circuits. Its PCB terminal connecting method ensures direct board-level integration. Manufactured by Omron and listed under Omron Timers, this model belongs to the reliable H3FA Series.
| Brand | Omron |
| Product | Timers |
| Model Number | H3FA-SA DC5/6 |
Omron Low DC 1min Solid-State Timer H3FA-SA DC5/6 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 5/6 VDC Ripple 3% max. |
| Allowable voltage variable range | for 5 VDC: 90 to 110% of the power supply voltage/for 6 VDC: 85 to 110% of the power supply voltage |
| Power consumption | Approx. 80 mW |
| Number of time ranges | 4 |
| Operation mode | Power ON-delay, Cumulative |
| Control output (Type) | Transistor output |
| Control output (Contact output) | 150 mA max. at 30 VDC, ON residual voltage: 1.0 V max. |
| Operating resetting | Time-limit operation/power-OFF resetting and external resetting, Integrating operation/power-OFF resetting and external resetting |
| Ambient temperature range | Operating: -10 to 55 β (with no icing) Storage: -25 to 65 β (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | Β±0.5% FS max. |
| Setting error | 0 to +30% FS max. (at 20 β, rated voltage) |
| Reset time | 10 ms max. |
| Influence of voltage | Β±1% FS max. |
| Influence of temperature | Β±5% FS max. (Β±5% Β±10 ms in a range of 1 s) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | Between control output terminals and operating circuit: 1,500 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.25 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | - |
| Connecting method | PCB terminal |
| Weight | Approx. 10 g |
IndMALL Dealing in Omron Low DC 1min Solid-State Timer, H3FA-SA DC5/6 at the best rates. Operational Specifications for H3FA-SA DC5/6 are PCB terminal, Approx. 10 g
, 100 MΞ© min. (at 500 VDC), Β±1% FS max., 10 ms max., Transistor output, Power ON-delay, Cumulative & 4. And It Delivers Approx. 80 mW, for 5 VDC: 90 to 110% of the power supply voltage/for 6 VDC: 85 to 110% of the power supply voltage & 5/6 VDC Ripple 3% max.. Unlock Exclusive Pricing with a Quote for your requirement of Omron Low DC 1min Solid-State Timer. Experience the advantage of our pricing and support against other Traders.
