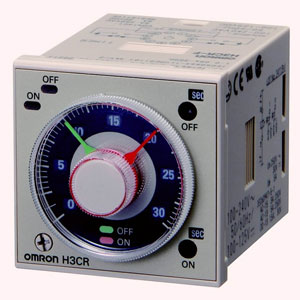

H3CR-F8 AC24-48/DC12-48: Omron Low Volt Flicker OFF 8-pin Timer
Technical Specifications of Omron Low Volt Flicker OFF 8-pin Timer H3CR-F8 AC24-48/DC12-48:
| Spec | Value |
|---|---|
| Rated power supply voltage | 24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) |
| Allowable voltage variable range | 85 to 110% of rated supply voltage (90 to 110% at 12 VDC) |
| Power consumption | Approx. 2 VA (at 24 VAC) Approx. 1.7 W (at 24 VAC)/Approx. 1 W (at 24 VDC) |
| Operation start voltage | 10% max. of rated supply voltage |
Omron Low Volt Flicker OFF 8-pin Timer H3CR-F8 AC24-48/DC12-48 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) |
| Allowable voltage variable range | 85 to 110% of rated supply voltage (90 to 110% at 12 VDC) |
| Power Consumption | Approx. 2 VA (at 24 VAC) Approx. 1.7 W (at 24 VAC)/Approx. 1 W (at 24 VDC) |
| Operation Start Voltage | 10% max. of rated supply voltage |
| Input Signals | - |
| Input Method | - |
| No Voltage Input | - |
| Number of Times Ranges | 18 |
| Opeation Mode | Flicker OFF start |
| Control Output Type | Time-limit: DPDT |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Operating resetting | Time-limit operation/Time-limit reset or Self-reset |
| Ambient temperature range | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | ±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s |
| Setting error | ±5% FS ±50 ms max. |
| Influence of voltage | ±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s |
| Influence of temperature | ±1% FS max. (±1% ±10 ms in a range of 1.2 s and 3 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
| Noise immunity | ±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 980 m/s2, 3 times each in 6 directions Malfunction: 98 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) Mechanical: 20 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP40 (panel surface) |
| Connecting method | 8-pin round socket |
| Weight | Approx. 100 g |
Mail Us for your needs in Omron Low Volt Flicker OFF 8-pin Timer, H3CR-F8 AC24-48/DC12-48 with budget-friendly prices. The Main Technical Parameters of H3CR-F8 AC24-48/DC12-48 include 24 to 48 VAC 50/60 Hz
12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier), 85 to 110% of rated supply voltage (90 to 110% at 12 VDC), Approx. 2 VA (at 24 VAC)
Approx. 1.7 W (at 24 VAC)/Approx. 1 W (at 24 VDC), 10% max. of rated supply voltage. Additionally, it provides Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value), Time-limit: DPDT, 18. Customize Your Experience with a Quote for your requirement of Omron Low Volt Flicker OFF 8-pin Timer. Experience the difference with our competitive pricing and superior support over other Suppliers.
