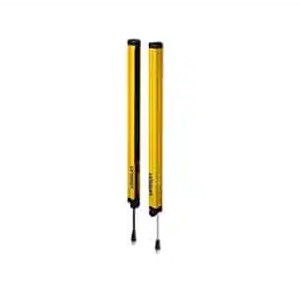

Omron F3SG-4RA0160-14 Safety Light Curtain
Omron F3SG-4RA0160-14 is a Safety Light Curtain designed for finger protection with 14 mm detection capability. Its sensing field contains 15 infrared beams arranged with a 10 mm beam gap across a 160 mm protective height. The model operates from a 24 VDC supply and provides PNP/NPN outputs for integration with compatible machine safety systems. Its sensing distance is specified at 0.3 to 10.0 m or 0.3 to 3.0 m depending on configuration. Within the F3SG-R Series, the F3SG-4RA0160-14 provides a compact finger-protection configuration. For fine-resolution guarding requirements, explore 14 mm finger protection light curtains available from Omron machine safety solutions.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SG-4RA0160-14 |
Omron F3SG-4RA0160-14 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Application | Finger protection |
| Object Resolution | Opaque objects |
| Detection Capability | 14-mm dia. |
| Beam Gap | 10 mm |
| Number Of Beams | 15 Beams |
| Protective Height | 160 mm |
| Lens Size | 5.2 × 3.4 (W × H) mm |
| Operating Range | 0.3 to 10.0 m, 0.3 to 3.0 m |
| Light Source | Infrared LEDs, Wavelength: 870 nm |
| Startup Waiting Time | 2 s max. |
| Power Supply Voltage | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) |
| Current Consumption | Emitter: 40 mA max.;Receiver: 75 mA max. |
| Safety Outputs Ossd | PNP/NPN |
| Degree Of Protection | IP65 and IP67 |
| Net Weight | 0.7 kg |
The Omron F3SG-4RA0160-14 Safety Light Curtain provides 14 mm finger detection across a 160 mm protective height. Its sensing field contains 15 infrared beams arranged with a 10 mm beam gap. The unit operates from a SELV/PELV 24 VDC supply and provides PNP/NPN safety outputs. Its sensing distance is specified at 0.3 to 10.0 m or 0.3 to 3.0 m depending on configuration. The enclosure carries IP65 and IP67 protection ratings.
For model selection, the F3SG-4RA0160-14 should be evaluated by its 14 mm detection capability, 160 mm protective height, 10 mm beam spacing, sensing range, and PNP/NPN output configuration. These values define the size of object detected and the vertical area covered by the protective field. For a larger hand and arm protection configuration with a 430 mm protective height and 20 mm beam gap, see Omron F3SG-4RA0430-30.
