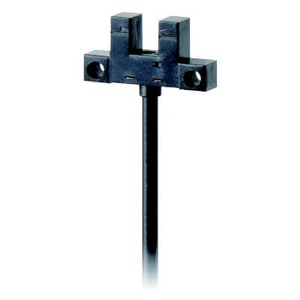

Omron EE-SX950-R 1M Photomicrosensor
Omron EE-SX950-R 1M is a standard through-beam slot photomicrosensor with a fixed 5 mm sensing gap and a 1 m robot cable. The NPN output supports both Light-ON and Dark-ON operating modes, allowing the switching response to match the required control logic. Power is supplied from 5 to 24 VDC, while current consumption is specified at 15 mA. The output supports a maximum load current of 50 mA, and a red light indicator provides visual operating status. Its non-modulated optical arrangement and robot-cable connection suit installations where cable movement is expected. Within the EE Series, the EE-SX950-R 1M supports the industrial slot sensor range available through Omron sensing solutions.
| Brand | Omron |
| Product | Photomicro Sensors |
| Model Number | EE-SX950-R 1M |
Omron EE-SX950-R 1M Photomicrosensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Standard |
| Sensing Method | Throughbeam with slot |
| Sensing Distance | 5 mm |
| Power Supply Voltage | 5 to 24 VDC |
| Control Output (Output Type) | NPN |
| Connection Method | Pre-wired model with robot cable 1 m |
| Cable Length | 1 m |
| Current Consumption | 15 mA |
| Operation Mode | With both Dark-ON and Light-ON |
| Control Output (Residual Voltage) | at 50 mA load current: 0.7 V max. at 5 mA load current: 0.4 V max. |
| Control Output (Load Current) | 50 mA max. |
| Indicator | Light indicator (red) |
| Luminous Method | Non-modulated |
| Ambient Temperature (Operating) | -25 to 55 ℃ |
| Ambient Temperature (Storage) | -30 to 80 ℃ |
| Ambient Humidity (Operating) | 5 to 85 % |
| Ambient Humidity (Storage) | 5 to 95 % |
| Vibration Resistance | Destruction: 10 to 2000 Hz, peak acceleration 150 m/s2, 0.75 mm single amplitude 2.5 h each in X, Y, and Z directions (15 min periods, 10 cycle) |
| Shock Resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree Of Protection | IP50 |
| Material | Case: Polybutylene terephthalate (PBT) Cover: Polybutylene terephthalate (PBT) Emitter/Receiver: Polycarbonate (PC) |

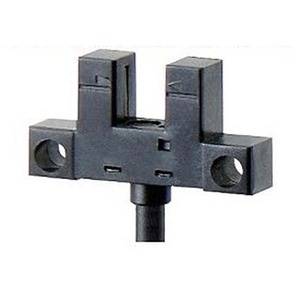

The Omron EE-SX950-R 1M Photomicrosensor uses a standard through-beam arrangement across a fixed 5 mm sensing slot. Its NPN output supports both Light-ON and Dark-ON operating modes, allowing the switching response to be selected according to the connected control logic. The sensor operates from 5 to 24 VDC and consumes 15 mA. Maximum load current is specified at 50 mA, with residual voltage of 0.7 V maximum at a 50 mA load and 0.4 V maximum at a 5 mA load. A red light indicator provides operating status. The optical arrangement is non-modulated, while the 1 m robot cable provides the electrical connection and distinguishes this model from the standard-cable EE-SX950-W version.
The EE-SX950-R uses PBT for the case and cover, with polycarbonate specified for the emitter and receiver sections. Operating temperature ranges from -25°C to 55°C, while storage extends from -30°C to 80°C. Mechanical resistance includes vibration from 10 to 2,000 Hz under the stated test procedure and shock resistance of 500 m/s² in each X, Y, and Z direction. The enclosure is rated IP50. Its robot cable is relevant where the wiring route is subject to repeated movement, while the NPN output and selectable switching modes retain flexible control integration. For the related version using a standard 1 m pre-wired cable instead of a robot cable, see the Omron EE-SX950-W 1M.
