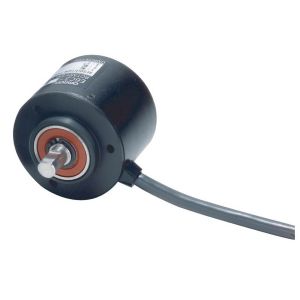

The Omron E6C3-CWZ3XH 200P/R 1M Rotary Encoder is an incremental shaft encoder developed to provide differential rotational feedback for machine position and motion monitoring. It generates 200 P/R with A/-A, B/-B, and Z/-Z line-driver outputs, enabling compatible control equipment to receive complementary signals representing shaft movement, direction, and reference position. A 5 to 12 VDC supply operates the encoder, while its 50 mm diameter housing provides the mechanical format for shaft installation. The 1 m pre-wired cable supports connection to nearby motion or machine control equipment. The E6C3-CWZ3XH 200P/R belongs to the E6C3-C Series. Its electrical and resolution characteristics place it within the 200 P/R line-driver encoder range offered as part of Omron machine automation products.
Operating: -10 to 70 ℃ (with no icing)
Storage: -25 to 85 ℃ (with no icing)
Degree of protection
IEC: IP65
Material
Case: Aluminum alloy
Accessories
Instruction manual
Weight
Package: Approx. 300 g
The Omron E6C3-CWZ3XH 200P/R 1M is part of the E6C3 Rotary Encoder range and is typically evaluated along with other Omron rotary encoders during panel design and motion control planning. Reviewing shaft type, resolution, output phase coding, control output stage, connector format, and cable arrangement helps ensure proper alignment with PLC high-speed inputs and mechanical coupling components. These compatible Omron encoder variants enable consistent wiring layouts, predictable pulse behaviour, connector alignment, and uniform signal performance across automation equipment. The E6C3-CWZ3XH 200P/R 1M integrates cleanly into modern industrial systems that require accurate, stable, and long-life rotary feedback devices, and is well suited for applications where a dependable Omron Encoders ensures reliable operation in demanding environments.
