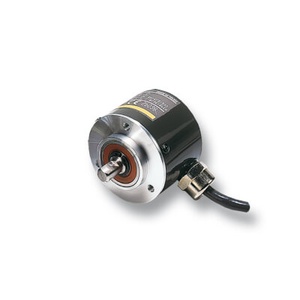

E6C3-AG5B 256P/R 1M: Omron Low Profile Encoder
Technical Specifications of Omron Low Profile Encoder E6C3-AG5B 256P/R 1M:
Spec | Value |
---|---|
Encoding Method | Absolute Shaft model |
Resolution | 256 P/R |
Output Code | Gray code |
Control Output | PNP open collector |
Connection Method | Pre-wired models (Cable length: 1 m) |
Omron Low Profile Encoder E6C3-AG5B 256P/R 1M Technical Specifications:
Specification | Value |
---|---|
Encoding Method | Absolute Shaft model |
Resolution | 256 P/R |
Output code | Gray code |
Control output | PNP open collector |
Connection method | Pre-wired models (Cable length: 1 m) |
Diameter | 50 mm dia. |
Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
Current consumption | 70 mA max. |
Inrush current | Approx. 6 A (0.8 ms) |
Logic | Positive logic (high = 1, low = 0) |
Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
Degree of protection | IEC: IP65 |
Material | Case: Aluminum |
Weight | Package: Approx. 300 g |
Accessories | Instruction manual |
IndMALL Offers Omron Low Profile Encoder, E6C3-AG5B 256P/R 1M at economical Choices. Product Tech Specs of E6C3-AG5B 256P/R 1M includes Absolute Shaft model, 256 P/R, Gray code & PNP open collector. And It Includes 50 mm dia., 70 mA max. & Positive logic (high = 1, low = 0). Now's the Time to Secure a Quote for your requirement of Omron Low Profile Encoder. Trust in our superior pricing and more dedicated support over other Distributors.
