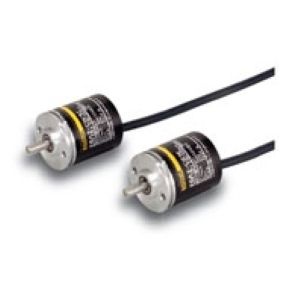

Omron E6A2-CW3E 360P/R 0.5M Rotary Encoder
The Omron E6A2-CW3E 360P/R 0.5M Rotary Encoder is an incremental shaft encoder used to provide rotational pulse feedback from compact machine mechanisms. It combines 360 P/R resolution with Phase A/B voltage outputs, supplying two-phase signals that compatible control equipment can use to monitor shaft movement and direction. The encoder operates from 5 to 12 VDC and uses a compact 25 mm diameter body with a 0.5 m pre-wired cable. This short-cable configuration supports installations where the control connection is positioned close to the encoder. The E6A2-CW3E 360P/R is one of the configurations within the E6A2-C Series. It also belongs to the 360 P/R voltage output encoder range forming part of Omron machine automation products.
| Brand | Omron |
| Product | Rotary Encoders |
| Model Number | E6A2-CW3E 360P/R 0.5M |
Omron E6A2-CW3E 360P/R 0.5M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 360 P/R |
| Output phases | Phase A, B |
| Control output | Voltage output |
| Connection method | Pre-wired model, 0.5 m Cable length |
| Diameter | 25 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 30 mA max. |
| Max. response frequency | 30 kHz |
| Ambient temperature | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 80 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: Aluminum alloy |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
| Weight | Package: Approx. 35 g |
The Omron E6A2-CW3E 360P/R 0.5M is part of the E6A2 Rotary Encoder range and is typically evaluated along with other Omron rotary encoders during panel design and motion control planning. Reviewing shaft type, resolution, output phase coding, control output stage, connector format, and cable arrangement helps ensure proper alignment with PLC high-speed inputs and mechanical coupling components. These compatible Omron encoder variants enable consistent wiring layouts, predictable pulse behaviour, connector alignment, and uniform signal performance across automation equipment. The E6A2-CW3E 360P/R 0.5M integrates cleanly into modern industrial systems that require accurate, stable, and long-life rotary feedback devices, and is well suited for applications where a dependable Omron Encoders ensures reliable operation in demanding environments.
