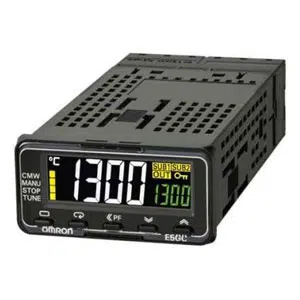

E5GC-QX1D6M-015: Omron 24V Digital Controller in Chennai
The Technical Specifications of the Omron 24V Digital Controller E5GC-QX1D6M-015:
- Shape: DIN 48 x 24
- Terminal-type: Screw terminal block
- Control output 1: Voltage output (for driving SSR)
- Number of total auxiliary output: 1 point
- Power supply voltage: 24 VAC (50/60 Hz) 24 VDC
- Control method: ON/OFF or 2-PID control
- Indication method: 11-segment digital display
- Case color: Black
Omron 24V Digital Controller E5GC-QX1D6M-015 Technical Specifications:
| Size | DIN 48 x 24 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Input type | Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Relay output |
| Control output 2 | None |
| Number of total auxiliary output | 1 point |
| Communications method | RS-485 (two-wire, half duplex) |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 24 VAC (50/60 Hz) 24 VDC |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 1.8 W max. (at 24 VDC) 3.2 VA max. (at 24 VAC) |
| Terminal | Voltage output (for driving SSR) |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Case color | Black |
| Accessories | Mounting adapter, Waterproof packing, Terminal Cover |
Are you searching for a reliable 24V digital controller? The Omron E5GC-QX1D6M-015 is a superb choice. It comes in a DIN 48 x 24 shape with a screw terminal block. This controller offers a voltage output for SSRs and one auxiliary output. It operates on 24 VAC (50/60 Hz) or 24 VDC and features ON/OFF or 2-PID control. The clear 11-segment digital display and sleek black case make it user-friendly. For the best rates, visit IndMALL Automation in Chennai.
