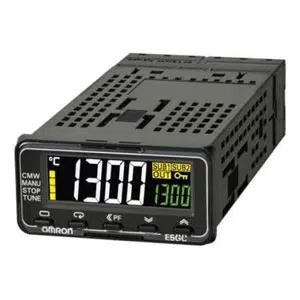

Omron E5GC-QX1ACM-000 Digital Temperature Controller

The Omron E5GC-QX1ACM-000 Temperature Controller combines SSR-oriented temperature control with one auxiliary function in a compact DIN 48 × 24 format. A single process input provides temperature information, while the controller accepts 100 to 240 VAC at 50/60 Hz, with an allowable voltage range of 85% to 110% of rated supply. ON/OFF or 2-PID control with auto-tuning provides different approaches to industrial thermal regulation. Its SSR-driving voltage output and one auxiliary output provide interfaces for primary temperature switching and an additional process function. Front-panel keys provide digital configuration, while an 11-segment display supports monitoring and screwless clamp terminals provide electrical connections. The E5GC-QX1ACM-000 is an E5GC Series configuration within the SSR temperature control range associated with Omron industrial automation.

Brand	Omron
Product	Temperature Controllers
Model Number	E5GC-QX1ACM-000

Omron E5GC-QX1ACM-000 Temperature Controller - Technical Specifications

Specification	Value
Shape	DIN48 x 24
Fixed/Programmable	Fixed
Power supply voltage	100 to 240 VAC (50/60 Hz)
Operating voltage range/ Allowable voltage variable range	85 to 110% of the power supply voltage
Power consumption	5.9 VA max. (at 100 to 240 VAC)
Control method	ON/OFF or 2-PID control with auto-tuning
Number of input points	1 point
Input Type/Temperature input	Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Control output 1	Voltage output (for driving SSR)
Control output 2	None
Number of total auxiliary output	1 point
Setting method	Digital setting using front panel keys
Indication method	11-segment digital display and individual indicators
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity)
Vibration resistance	Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Shock resistance	Destruction: 300 m/s2, 3 times each in X, Y, and Z directions Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)	-10 to 55 ℃ (with no freezing or condensation) For 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation)
Ambient temperature (Storage)	-25 to 65 ℃
Ambient humidity (Operating)	25 to 85 %
Degree of protection	Front panel: IP66, Rear case: IP20, Terminal section: IP00
Case color	Black
Terminal type	Screwless clamp terminals
Weight	Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
