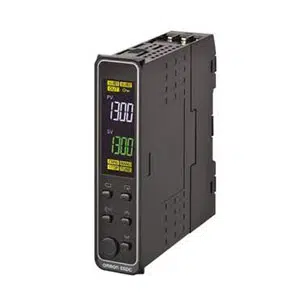

Omron E5DC-QX2AUM-000 Digital Temperature Controller

The Omron E5DC-QX2AUM-000 Temperature Controller is a slim 22.5 mm wide DIN track-mounting controller configured for SSR-oriented industrial temperature control. It supports thermocouple, platinum resistance thermometer, and infrared thermosensor ranges and operates from 100 to 240 VAC at 50/60 Hz. ON/OFF or 2-PID control with auto-tuning enables different temperature regulation methods according to process requirements. Its voltage output for driving an SSR and two auxiliary outputs provide the primary switching interface together with additional control functions. Front-panel keys support digital configuration, while an 11-segment display provides process monitoring. The E5DC-QX2AUM-000 forms part of the E5DC Series under the SSR output temperature controller range offered by Omron automation products.

Brand	Omron
Product	Temperature Controllers
Model Number	E5DC-QX2AUM-000

Omron E5DC-QX2AUM-000 Temperature Controller - Technical Specifications

Specification	Value
Shape	22.5 mm wide
Power supply voltage	100 to 240 VAC, 50/60 Hz
Operating voltage range/ Allowable voltage variable range	85 to 110% of the power supply voltage
Power consumption	4.9 VA max. at 100 to 240 VAC, and 2.8 VA max. at 24 VDC or 1.5 W max. at 24 VDC
Control method	ON/OFF or 2-PID control with auto-tuning
Input Type/Temperature input	Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Control output 1	Voltage output (for driving SSR)
Number of total auxiliary output	2
Setting method	Digital setting using front panel keys
Indication method	11-segment digital displays and individual indicators; Character height: PV: 8.5 mm, SV: 8.0 mm
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance	10 to 55 Hz, 20 m/s2 for 2 hr each in X, Y, and Z directions
Shock resistance	300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)	−10 to 55°C (with no condensation or icing), For 3-year warranty: −10 to 50°C with standard mounting (with no condensation or icing)
Ambient temperature (Storage)	−25 to 65°C (with no condensation or icing)
Ambient humidity (Operating)	25 to 85%
Degree of protection	Main unit: IP20, Terminal unit: IP00
Terminal type	Main Unit only (no Terminal Unit)
Weight	Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
