Omron E5DC-QX0DBM-015 Digital Temperature Controller

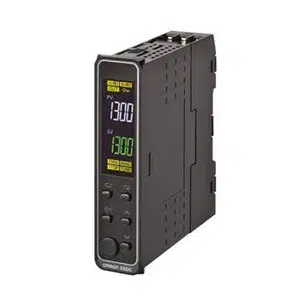

The Omron E5DC-QX0DBM-015 Temperature Controller is a slim 22.5 mm wide DIN track-mounting controller configured for low-voltage temperature control through an SSR-driving output. It uses one process input compatible with thermocouple, platinum resistance thermometer, and infrared thermosensor ranges and operates from 24 VAC at 50/60 Hz or 24 VDC. ON/OFF or 2-PID control with auto-tuning supports different thermal process requirements. The voltage output for driving an SSR operates without auxiliary outputs, providing the primary switching signal for the connected circuit. Front-panel keys with a protection function support digital setting, while an 11-segment display provides monitoring and Push-In Plus terminals provide wiring connections. The E5DC-QX0DBM-015 belongs to the E5DC Series within the 24V SSR temperature controller range from Omron process automation.

Brand	Omron
Product	Temperature Controllers
Model Number	E5DC-QX0DBM-015

Omron E5DC-QX0DBM-015 Temperature Controller - Technical Specifications

Specification	Value
Shape	22.5 mm wide
Fixed/Programmable	Fixed
Power supply voltage	24 VAC (50/60 Hz) 24 VDC
Operating voltage range/ Allowable voltage variable range	85 to 110% of the power supply voltage
Power consumption	1.5 W max. (at 24 VDC) 2.8 VA max. (at 24 VAC)
Control method	ON/OFF or 2-PID control with auto-tuning
Number of input points	1 point
Input Type/Temperature input	Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Control output 1	Voltage output (for driving SSR)
Control output 2	None
Setting method	Digital setting using front panel keys (with protection function)
Indication method	11-segment digital display and individual indicators
Insulation resistance	Between charged terminals and exposed uncharged parts: 20 MΩ min. (500 VDC) Between current-carrying terminals: 20 MΩ min. (500 VDC) Between non-continuous contacts: 20 MΩ min. (500 VDC)
Dielectric strength	3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity)
Vibration resistance	Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Shock resistance	Destruction: 300 m/s2, 3 times each in X, Y, and Z directions Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)	-10 to 55 ℃ (with no freezing or condensation) For 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation)
Ambient temperature (Storage)	-25 to 65 ℃ (with no freezing or condensation)
Ambient humidity (Operating)	25 to 85 %
Degree of protection	Main unit: IP20, Terminal unit: IP00
Case color	Black (N1.5)
Terminal type	Push-In Plus Terminal Block
Weight	Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
