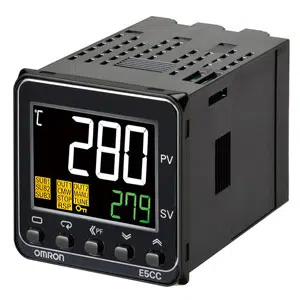

Omron E5CC-QX2ASM-801 Digital Temperature Controller

The Omron E5CC-QX2ASM-801 Temperature Controller is a DIN 48 × 48 digital controller designed for industrial temperature regulation through an SSR-driving voltage output. It operates from 100 to 240 VAC at 50/60 Hz, with an allowable supply range of 85% to 110% of rated voltage. ON/OFF or 2-PID control with auto-tuning provides the control methods for managing the connected thermal process. Its voltage output for driving an SSR provides an interface for external solid state relay switching. Digital settings can be entered using the front-panel keys, while an 11-segment display provides operating visibility and screw connections support panel installation. The E5CC-QX2ASM-801 identifies this configuration within the E5CC Series and connects it to the industrial temperature control range from Omron control products.

Brand	Omron
Product	Temperature Controllers
Model Number	E5CC-QX2ASM-801

Omron E5CC-QX2ASM-801 Temperature Controller - Technical Specifications

Specification	Value
Shape	DIN 48 × 48 mm
Power supply voltage	100 to 240 VAC, 50/60 Hz
Operating voltage range/ Allowable voltage variable range	85% to 110% of rated supply voltage
Power consumption	5.2 VA max. at 100 to 240 VAC
Control method	ON/OFF control or 2-PID control (with auto-tuning)
Input Type/Temperature input	Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C
Control output 1	Voltage output (for driving SSR)
Setting method	Digital setting using front panel keys
Indication method	11-segment digital display and individual indicators
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance	Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
Shock resistance	Malfunction 100 m/s2, 3 times each in X, Y, and Z directions Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)	-10 to 55°C (with no condensation or icing)
Ambient temperature (Storage)	-25 to 65°C (with no condensation or icing)
Ambient humidity (Operating)	25 to 85 %
Degree of protection	Front panel: IP66, Rear case: IP20, Terminals: IP00
Terminal type	Screw
Weight	Approx. 120 g, Adapter: Approx. 10 g
