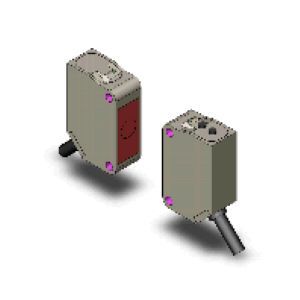

Omron E3ZM-T61 2M Photoelectric Sensor
Omron E3ZM-T61 2M is a through-beam photoelectric sensor designed for object sensing across a specified distance of 15 m. The sensing arrangement uses the E3ZM-T61-L emitter and E3ZM-T61-D receiver, with a 660 nm red LED establishing the optical path between them. The NPN output communicates the switching state to compatible industrial control circuitry, while a Light-ON or Dark-ON switch supports different machine sequences. The sensor operates from 10 to 30 VDC and uses 2 m pre-wired cables for electrical connection. The emitter and receiver each consume up to 20 mA, while response time is 1 ms maximum. Within the E3ZM Series, the E3ZM-T61 2M provides fixed wiring within the 15 m through-beam sensor range across Omron Automation Sensors.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3ZM-T61 2M |
Omron E3ZM-T61 2M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Through-beam |
| Sensing Distance | 15 m |
| Emitter Number | E3ZM-T61-L 2M |
| Receiver Number | E3ZM-T61-D 2M |
| Standard Sensing Object | Opaque: 12 mm dia. min. |
| Light Source | Red LED (660 nm) |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | NPN |
| Connection Method | Pre-wired 2 M Cable |
| Current Consumption | Emitter, Receiver: 20 mA max. each |
| Control Output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) |
| Operation Mode | Light-ON/Dark-ON switch |
| Response Time | Operate or reset: 1 ms max. |
| Sensitivity Adjustment | One-turn adjuster |
| Indicators | Operation indicator (yellow), Stability indicator (green) (Emitter has only power supply indicator (green).) |
| Ambient Illumination | Incandescent lamp: 3,000 lx max. Sunlight 10,000 lx max. |
| Ambient Temperature Range | Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. at 500 VDC |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 min |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Protection Circuits | Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection |
| Degree Of Protection | IEC: IP67, DIN 40050-9: IP69K |
| Material | SUS316, Methacrylic resin, PES (polyether sulfone), PEEK (polyether ether ketone), Fluoro rubber |
| Weight | Approx. 150 g |
The Omron E3ZM-T61 2M Photoelectric Sensor uses through-beam sensing across a specified distance of 15 m. The optical arrangement consists of the E3ZM-T61-L emitter and E3ZM-T61-D receiver, with a 660 nm red LED establishing the beam between them. An opaque target of 12 mm diameter minimum is specified. The NPN output supports compatible industrial control circuitry, with load supply voltage up to 30 VDC and load current up to 100 mA. Both sensing units operate from 10 to 30 VDC and consume up to 20 mA each. A Light-ON or Dark-ON switch controls the output behavior, while operate or reset time is 1 ms maximum. A one-turn adjuster supports setup, and 2 m pre-wired cables provide fixed electrical connection. Receiver indicators show operation and stability, while the emitter has a power indicator.
For an Omron NPN through-beam sensor requiring 15 m sensing and pre-wired installation, the relevant model is the E3ZM-T61. Operating temperature is specified from -25 to 55°C, with storage from -40 to 70°C. Reversed supply polarity protection, output short-circuit protection, and reversed output-polarity protection are included. SUS316, methacrylic resin, PES, PEEK, and fluoro rubber are listed among the materials. The visible red LED differentiates this supplied 2 m configuration from the 5 m listing, which states an infrared light source. For the same model designation with longer cable routing, see E3ZM-T61 5M.
