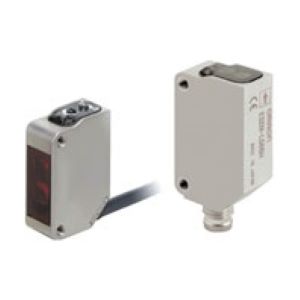

E3ZM-R81 5M: Omron 5M Retro-reflective Pre-wired Sensor
Technical Specifications of Omron 5M Retro-reflective Pre-wired Sensor E3ZM-R81 5M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Retro-reflective |
| Sensing Distance | 100 mm to 4 m |
| Connection Method | Pre-wired cable length 5m |
Omron 5M Retro-reflective Pre-wired Sensor E3ZM-R81 5M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | Retro-reflective |
| Sensing Distance | 100 mm to 4 m |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 5m |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP open collector |
| Current Consumption | 25 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | SUS316L |
| Material Lens | Methacrylate resin |
| Weight | 90 g |
Give Us a Call for Omron 5M Retro-reflective Pre-wired Sensor, E3ZM-R81 5M at the lowest pricing. In-depth Technical Analysis of E3ZM-R81 5M includes Square type, Retro-reflective , 100 mm to 4 m, Red LED, Pre-wired cable length 5m, 10 to 30 VDC, PNP open collector & 25 mA max.. It functionality Includes 1 ms max., Light-ON/Dark-ON & IP67. Elevate Your Project with a Quote for your requirement of Omron 5M Retro-reflective Pre-wired Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
