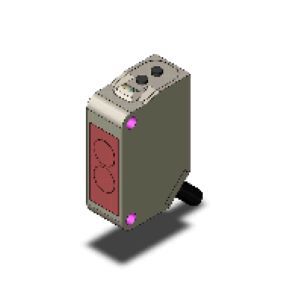

Omron E3ZM-D82 2M Photoelectric Sensor
Omron E3ZM-D82 2M is a diffuse-reflective photoelectric sensor designed for object sensing across a specified distance of 1 m. Its infrared LED directs optical light toward the target, while the returned light establishes the sensing state without requiring a separate receiver. The PNP output communicates the switching state to compatible PLC and machine-control circuitry, while Light-ON and Dark-ON operation supports different control requirements. The sensor operates from 10 to 30 VDC and includes a 2 m pre-wired cable for fixed electrical connection. Current consumption is specified at 25 mA maximum, while response time is 1 ms maximum. Its PNP output distinguishes this configuration from the corresponding NPN versions. The E3ZM-D82 2M sits within the 1 m PNP diffuse sensor range across Omron Sensing Range.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3ZM-D82 2M |
Omron E3ZM-D82 2M Photoelectric Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Diffuse-reflective |
| Shape | Square type |
| Sensing Distance | 1m |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP |
| Connection Method | Pre-wired cable length 2m |
| Current Consumption | 25 mA max. |
| Light Source (Wavelength) | Infrared LED |
| Operation Mode | Light-ON/Dark-ON |
| Response Time | 1 ms max. |
| Degree Of Protection | IP67 |
| Material | SUS316L |
| Material Lens | Methacrylate resin |
| Weight | 90 g |
The Omron E3ZM-D82 2M Photoelectric Sensor uses diffuse-reflective sensing across a specified distance of 1 m. An infrared LED directs optical light toward the target, while the returned light establishes the sensing state without requiring a separate receiver or reflector. The PNP output communicates the switching condition to compatible PLC and machine-control circuitry. The sensor operates from 10 to 30 VDC and consumes up to 25 mA. Light-ON and Dark-ON operation supports different switching requirements, while response time is specified at 1 ms maximum. A 2 m pre-wired cable provides fixed electrical connection. The square sensor body is specified with SUS316L material, while methacrylate resin is listed for the optical material. Its PNP output distinguishes this configuration from the NPN E3ZM-D62 versions with the same supplied sensing distance.
For an Omron diffuse-reflective photoelectric sensor requiring PNP output and 2 m fixed wiring, the relevant model is the E3ZM-D82. The 10 to 30 VDC operating range supports compatible industrial control equipment, while the 25 mA maximum current consumption defines the stated electrical requirement. Its infrared source allows target sensing from returned optical energy, keeping both optical functions within the same sensor body. The 1 ms response supports quick switching, while the 1 m sensing distance defines the supplied optical range. Its characteristics also support requirements for an Omron PNP diffuse sensor and Omron 1 m photoelectric sensor. For a related NPN configuration with the same sensing distance and 2 m cable, see E3ZM-D62 2M.
