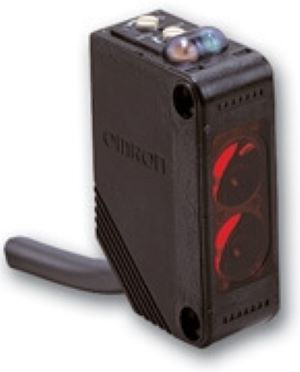

Omron E3Z-B62 5M Photoelectric Sensor
Omron E3Z-B62 5M is a retro-reflective photoelectric sensor without the MSR function, specified for clear plastic bottle sensing across a range from 500 mm to 2 m. Its 660 nm red LED establishes the optical path between the sensor and reflector, while the NPN output transfers the switching state to compatible control circuitry. Light-ON or Dark-ON operation can be selected according to the required machine logic. The sensor operates from 12 to 24 VDC and includes a 5 m pre-wired cable for extended routing. Current consumption is specified at 30 mA maximum, and response time is 1 ms maximum. Within the E3Z Series, the E3Z-B62 5M provides the long-cable configuration. Related long-range bottle sensors are available across Omron Sensors.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3Z-B62 5M |
Omron E3Z-B62 5M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Retro-reflective without M.S.R. function |
| Shape | Square |
| Sensing Distance | 500 mm to 2 m |
| Power Supply Voltage | 12 to 24 VDC |
| Output Configuration | NPN |
| Connection Method | Pre Wired Cable, 5M Length |
| Current Consumption | 30 mA Max |
| Light Source (Wavelength) | Red LED (660 nm) |
| Operation Mode | Light-ON/Dark-ON selectable |
| Response Time | 1 ms max. |
| Degree Of Protection | IEC: IP67 |
| Material | Polybutylene terephthalate (PBT) |
| Material Lens | Denatured Polyarylate |
| Features | Transparent detection |
| Weight | 65g |
The Omron E3Z-B62 5M Photoelectric Sensor uses retro-reflective sensing without the MSR function for clear plastic bottle sensing across a specified range from 500 mm to 2 m. A 660 nm red LED establishes the optical path between the sensor and reflector, while the NPN output transfers the switching state to compatible control circuitry. Light-ON or Dark-ON operation can be selected according to the required machine logic. The sensor operates from 12 to 24 VDC and includes a 5 m pre-wired cable for installations requiring additional routing length. Current consumption is specified at 30 mA maximum, while response time is 1 ms maximum. Its square construction uses PBT and denatured polyarylate materials.
For an Omron retro-reflective sensor requiring NPN output, selectable switching logic, and a 2 m maximum sensing range, the relevant model is the E3Z-B62. The 5 m cable supports installations where the sensing position is farther from associated control equipment. IP67 enclosure protection is stated in the supplied specification. The configuration also aligns with searches for an Omron clear bottle sensor and Omron 2 m NPN photoelectric sensor. For the same E3Z-B62 range with a shorter 0.5 m pre-wired cable, see the E3Z-B62 0.5M. Both supplied variants use the same NPN architecture, 12 to 24 VDC operating range, red LED source, and selectable Light-ON or Dark-ON switching.
