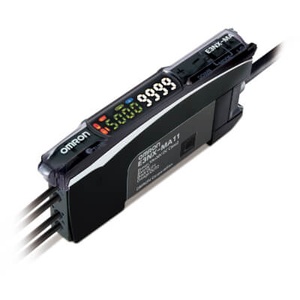

Omron E3NX-MA41 2M Fiber Optic Sensor
Omron E3NX-MA41 2M is a 2-channel PNP fiber amplifier designed for object detection with compatible fiber optic sensing heads. Its dual fiber channels and 2 PNP outputs allow one amplifier to process two sensing channels, while a twin digital display provides detection and setting information. Teach-In and smart tuning support sensor setup, and selectable Dark-ON and Light-ON modes provide switching flexibility. The 0.1 ms response supports fast detection, while bank, self-diagnosis and timer functions extend control capability. The E3NX-MA41 2M belongs to the E3NX-MA Series within the fiber amplifier range from Omron sensing products, combining dual-channel optical detection with PNP machine control outputs.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3NX-MA41 2M |
Omron E3NX-MA41 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Sensing Method | Amplifier |
| Application | Object detection |
| Features | 2 channels, Bank function, Twin outputs |
| Setting Method | Teach-In |
| Output | PNP |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10-30 V |
| Function | Self-diagnosis, Timer, Twin |
| Response Time | 0.1 ms |
| Material Housing | Polycarbonate |
| Number Of Digital Outputs | 2 |
| Type Of Light | Polarity free red light |
| Degree Of Protection Ip | IP50 |
The Omron E3NX-MA41 2M Fiber Amplifier provides 2 sensing channels and 2 PNP outputs for processing object-detection signals from compatible fiber optic sensing heads. Its dual-channel architecture is the main functional distinction, allowing two fiber inputs to be handled through one amplifier unit. A twin digital display provides visibility of detection information and settings, while Teach-In and smart tuning support sensor configuration. Selectable Dark-ON and Light-ON operation provides output-logic flexibility. The 0.1 ms response supports fast detection, while bank, self-diagnosis and timer functions extend setup and monitoring capability. A pre-wired 2 m cable provides electrical connection, and the amplifier operates from 10 to 30 VDC. The important product relationships are dual-channel fiber amplification, 2 PNP outputs, Teach-In, smart tuning, twin display, bank function and object detection. These attributes provide stronger model-selection context than weight or secondary physical specifications. Within the E3NX-MA Series, channel count, output configuration, connection method and tuning functions help define the amplifier's role in a sensing system. The E3NX-MA41 therefore combines multi-channel optical detection with configurable PNP control. For another 2-channel E3NX-MA amplifier using 2 PNP outputs but a system connector, the E3NX-MA8 provides the closest related comparison.
