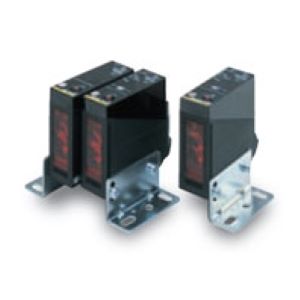

Omron E3JM-DS70M4T-G Photoelectric Sensor
Omron E3JM-DS70M4T-G provides diffuse-reflective sensing up to 700 mm with a 940 nm infrared optical source. The sensing light returns directly from the target surface, allowing the sensor to operate without a separate reflector. Its SPDT relay supports compatible control circuits, while 12 to 240 VDC and 24 to 240 VAC supply compatibility allows installation with different machine power systems. Light-ON or Dark-ON operation can be selected, and the built-in adjustable delay supports timing from 0.1 to 5 seconds. Terminal-block wiring provides the electrical connection. The E3JM-DS70M4T-G forms part of the E3JM Series. Similar relay models can be compared under 700 mm relay sensors across the wider sensing range available from Omron Sensing Products.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3JM-DS70M4T-G |
Omron E3JM-DS70M4T-G Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Diffuse-reflective |
| Sensing Distance | White paper (200 × 200 mm): 700 mm |
| Light Source | Infrared LED (940 nm) |
| Power Supply Voltage | 12 to 240 VDC, ripple (p-p): 10% max. 24 to 240 VAC, 50/60 Hz |
| Output Configuration | Relay |
| Connection Method | Terminal block |
| Control Output | SPDT, 250 VAC, 3A (cosφ=1) max., 5 VDC, 10 mA min. |
| Operation Mode | Light-ON Dark-ON (switch selectable) |
| Response Time | Operate or reset: 30 ms max. |
| Sensitivity Adjustment | One-turn adjuster |
| Timer Function | Delay time: 0.1 to 5 s (adjustable) |
| Ambient Illumination | Incandescent lamp: 3,000 lx max. |
| Ambient Temperature Range | Operating: −25°C to 55°C, Storage: −30°C to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 45% to 85% (with no condensation), Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. at 500 VDC |
| Dielectric Strength | 2,000 VAC, 50/60 Hz for 1 min. |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 3 times each in X, Y, and Z directions, 100 m/s2 3 times each in X, Y, and Z directions |
| Degree Of Protection | IEC 60529: IP66 |
| Material | ABS (Acrylonitril Butadiene Styrene), Methacrylic resin, Polycarbonate, Iron |
| Weight | Approx. 160 g |
The Omron E3JM-DS70M4T-G Photoelectric Sensor provides diffuse-reflective sensing over a distance of up to 700 mm using a 940 nm infrared LED. The emitted light returns directly from the target, allowing object sensing without a separately mounted reflector. Its SPDT relay supports up to 3 A at 250 VAC under the stated resistive-load condition, while supply compatibility covers 12 to 240 VDC and 24 to 240 VAC at 50/60 Hz. Terminal-block wiring provides the electrical interface. Light-ON or Dark-ON operation can be selected, and a one-turn adjuster supports sensitivity setting. An adjustable timer from 0.1 to 5 seconds provides control over the relay switching sequence. Operate or reset time is specified at 30 ms max., and power consumption is listed at 2 W max. The G-version format provides an alternative wiring arrangement within the same sensing group.
For an Omron 700 mm timer photoelectric sensor requiring relay output and broad AC/DC voltage support, the corresponding model is the E3JM-DS70M4T-G. Its adjustable timer provides delayed switching while retaining the same infrared diffuse-reflective sensing principle. The specification also suits searches for an Omron diffuse relay sensor and Omron multi voltage timer sensor. Operating temperature extends from -25 to 55°C, while sensitivity can be set with the one-turn adjuster. For the closely related timer-equipped 700 mm model without the G designation, see E3JM-DS70M4T.
