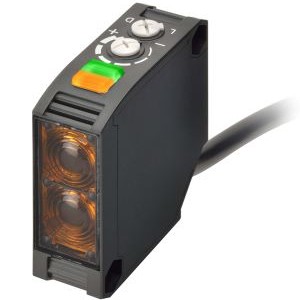

Omron E3JK-RR13 2M Photoelectric Sensor

Omron E3JK-RR13 2M is a retro-reflective photoelectric sensor with an infrared LED, a sensing distance of up to 7 m with the E39-R1 reflector or 11 m with the E39-R2, SPDT relay output and a wide 24–240 VAC/DC power supply. It runs directly on AC or DC without a separate power supply, and its invisible infrared beam suits applications where a visible light spot is not wanted. For the same range with a visible red LED, see the E3JK-RR11 2M. It is part of the Omron E3JK Series. Explore more Omron photoelectric sensors.

Omron E3JK-RR13 2M Photoelectric Sensors

Brand	Omron
Product	Photoelectric Sensors
Model Number	E3JK-RR13 2M

Omron E3JK-RR13 2M Photoelectric Sensor – Technical Specifications

Specification	Value
Sensing Method	Retro-reflective without M.S.R. function
Shape	Square body
Sensing Distance	11 m
Power Supply Voltage	24 to 240 VDC
Output Configuration	Relay output
Connection Method	Pre Wired Cable, 2M Length
Current Consumption	2 W max.
Light Source (Wavelength)	Infrared LED (850 nm)
Operation Mode	Light-ON/Dark-ON
Response Time	20 ms max.
Degree Of Protection	IEC: IP64
Material	ABS (Acrylonitrile Butadiene Styrene)
Material Lens	Methacrylic resin
Material Cable	PVC
Features	Multi voltage power supply
Weight	180 g

Which E3JK Retro-Reflective Model Do You Need?

Model	Type	Range (E39-R1)	Light Source	Output	Supply	Accessories
E3JK-RR11 2M	Standard	7 m	Red	Relay	24–240 VAC/DC	None
E3JK-RR12 2M	MSR	6 m	Red	Relay	24–240 VAC/DC	None
E3JK-RR13 2M	Standard	7 m	Infrared	Relay	24–240 VAC/DC	None
E3JK-RR13-C 2M	Standard	7 m	Infrared	Relay	24–240 VAC/DC	Reflector + bracket
E3JK-RN13 2M	Standard	7 m	Infrared	NPN	10–30 VDC	None
E3JK-RP13 2M	Standard	7 m	Infrared	PNP	10–30 VDC	None

MSR (mirror surface rejection) models prevent shiny objects from being mistaken for the reflector. Ranges shown are with the E39-R1 reflector.
