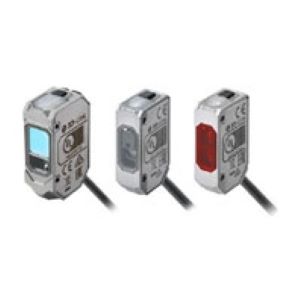

Omron E3AS-F1500IPT M3 Photoelectric Sensor
Omron E3AS-F1500IPT M3 provides distance-settable sensing from 50 to 1500 mm using a Class 1 infrared laser and PNP output. The sensor is powered from 10 to 30 VDC and uses an M8 connector, making it possible to separate the sensing unit from the machine cable during replacement or servicing. A 150 ms operate or reset time is specified, together with protection against reverse polarity and output short-circuit conditions. The longer adjustable range supports applications requiring sensing beyond shorter configurations. Within the E3AS Series, the E3AS-F1500IPT M3 represents the PNP connector version. For longer adjustable sensing with detachable wiring, PNP laser photoelectric sensors are included across Omron Industrial Sensors.
| Brand | Omron |
| Product | Photoelectric Sensors |
| Model Number | E3AS-F1500IPT M3 |
Omron E3AS-F1500IPT M3 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Distance | 50 mm to 1500 mm |
| Light Source | Infrared Laser |
| Laser Class | Class 1 |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP |
| Connection Method | M8 Connector |
| Current Consumption | 30 mA max. |
| Control Output | Load power supply voltage: 30 VDC max., Class2, Load current: 100 mA max. |
| Response Time | Operate or reset: 150 ms max. |
| Indicators | Operation indicator (orange), Stability & Communication indicator |
| Ambient Illumination | Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. |
| Ambient Temperature Range | Operating: -20 to 55°C, Storage: -40 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. at 500 VDC |
| Dielectric Strength | 1,000 VAC, 50/60 Hz for 1 min |
| Vibration Resistance | 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 for 3 times each in X, Y, and Z directions |
| Protection Circuits | Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection |
| Degree Of Protection | IP67 (IEC60529) and IP67G (JIS C 0920 Annex 1), IP69K (ISO20653) |
| Material | Metal case type: Main unit/mounting part/connector part Stainless steel (SUS316L) Plastic case type: Main unit Polybutylene terephthalate (PBT) / polycarbonate (PC), Mounting part/connector part Nickel-plated brass |
| Weight | Approx. 75 g/approx. 30 g, Approx. 60 g/approx. 15 g |
The Omron E3AS-F1500IPT M3 Photoelectric Sensor uses a Class 1 infrared laser for distance-settable sensing from 50 to 1500 mm. The PNP output supplies the switching state to compatible PLC and machine-control inputs, while operation from 10 to 30 VDC supports industrial automation systems. An M8 connector provides detachable electrical connection, allowing the sensing unit to be removed without disturbing fixed machine-side cabling. Current consumption is specified at 30 mA, and load current up to 100 mA is supported under the stated conditions. The adjustable sensing arrangement allows the target distance to be set within the specified range. Operate or reset time is 150 ms. Power-supply reverse polarity, output short-circuit, and output reverse-polarity protection are incorporated into the electrical design.
For applications requiring an Omron distance-settable laser sensor with PNP switching, M8 wiring, and sensing up to 1500 mm, the matching model is the E3AS-F1500IPT M3. Ambient operating temperature extends from -20 to 55°C, with storage from -40 to 70°C under non-condensing conditions. Vibration resistance covers 10 to 55 Hz, while shock resistance reaches 500 m/s². Depending on configuration, SUS316L stainless steel or PBT and polycarbonate housing materials are specified. Environmental ratings include IP67, IP67G, and IP69K. The specification also supports searches for an Omron PNP laser photoelectric sensor and Omron M8 distance sensor. For a related shorter-range PNP E3AS model, see E3AS-F1000IPT M3.
