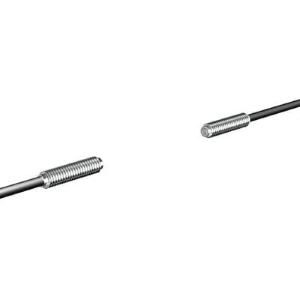

Omron E32-T51 2M Fiber Optic Sensor
Omron E32-T51 2M is a heat-resistant through-beam fiber optic sensor designed for object detection at sensing distances up to 4000 mm. Its threaded sensing structure uses a top-view optical direction, while the R35 heat-resistant fiber supports operation across a specified -40 to 150°C temperature range. The pre-wired 2 m fiber uses a plastic core with a fluororesin sheath and provides a 35 mm bending radius. This combination makes temperature resistance and long sensing distance important characteristics of the model. IP67 protection supports demanding sensing conditions. The E32-T51 2M belongs to the E32 Series within the heat-resistant fiber sensor range from Omron sensing products, combining through-beam detection with heat-resistant fiber construction.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-T51 2M |
Omron E32-T51 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 4000 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Through-beam |
| Application | Object detection |
| Features | R35 heat resistant fiber |
| Temperature Range | -40-150 °C |
| Bending Radius | 35 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Top-view |
| Material Sheath | Fluororesin |
| Degree Of Protection Ip | IP67 |
The Omron E32-T51 2M Fiber Optic Sensor uses through-beam sensing for object detection at distances up to 4000 mm. Its threaded sensing structure provides a defined mounting arrangement, while the top-view sensing direction positions the optical path toward the detection area. The R35 heat-resistant fiber is a defining characteristic of this model because it supports a specified operating temperature range from -40 to 150°C. The pre-wired 2 m fiber uses a plastic core with a fluororesin sheath and provides a 35 mm bending radius. IP67 protection further defines the supplied environmental rating. Through-beam detection, 4000 mm sensing distance, heat-resistant fiber, fluororesin sheath and threaded top-view construction are the main attributes for model selection. Temperature capability is especially important when differentiating E32-T51 from standard E32 through-beam fiber heads designed around flexibility or miniature dimensions. The model therefore combines extended sensing distance with a fiber structure intended for higher-temperature conditions. For another supplied E32 through-beam model with the same 4000 mm detection distance but focused on flexible right-angle sensing rather than heat resistance, the E32-T11NF 2M provides a useful related configuration for comparing fiber construction and sensing orientation.
