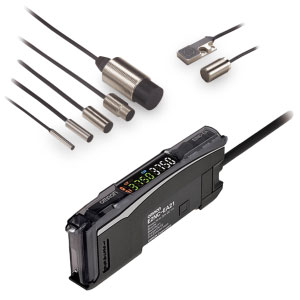

Omron E2NC-ED01 Proximity Sensor
Omron E2NC-ED01 is a smart cylindrical shielded proximity sensor with a 1 mm sensing distance and standard connector connection. Ferrous metal is the specified detectable object, with a 5 × 5 mm standard sensing object. It is rated for operation from -10 to 60°C and storage from -20 to 70°C without icing or condensation, while operating and storage humidity is 35% to 85%. SUS, heat-resistant ABS, and PES are listed as construction materials, and IP67 is the specified protection level. Its compact cylindrical sensing head uses a connector rather than a pre-wired cable. The E2NC-ED01 is listed among smart proximity sensors from Omron sensor products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2NC-ED01 |
Omron E2NC-ED01 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Cylindrical |
| Sensing Distance | 1 mm |
| Connection | Connector |
| Cable Specifications | Standard |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | 5 × 5 mm |
| Ambient Temperature Range | Operating:-10°C to 60°C (with no icing or condensation) Storage:-20°C to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 85% (with no condensation) |
| Material | SUS, Heat-resistant ABS, PES |
| Degree Of Protection | IP67 |
| Weight | Approx. 120 g |
The Omron E2NC-ED01 Proximity Sensor uses a smart cylindrical shielded sensing head with a 1 mm sensing distance and standard connector connection. Ferrous metal is the specified detectable object, with a 5 × 5 mm standard sensing object. The available specifications identify a connector-based cylindrical sensor rather than a pre-wired cable model. Operating temperature is -10 to 60°C, while storage temperature is -20 to 70°C without icing or condensation. Operating and storage humidity is 35% to 85%. SUS, heat-resistant ABS, and PES are listed among the construction materials. The sensor carries IP67 protection, combining the specified 1 mm shielded sensing distance with the stated connector interface and environmental range.
Environmental data for the E2NC-ED01 keeps the same 35% to 85% humidity range during operation and storage, with separate temperature limits for active use and storage. The 5 × 5 mm standard sensing object is specified for ferrous-metal detection. SUS, heat-resistant ABS, and PES are the listed construction materials, and the connector format is specified as standard. No output type, response frequency, current consumption, or supply-voltage value is provided for this sensor-head row, so those values are not added. IP67 remains the stated protection level. For another connector-based E2NC sensor with a screw-type body and 2 mm sensing distance, see E2NC-EM02.
