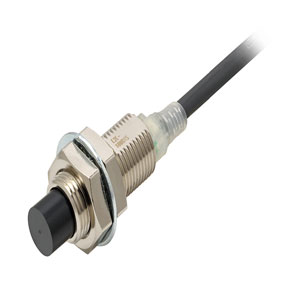

Omron E2E-X7D2-N 2M Proximity Sensor
Omron E2E-X7D2-N 2M is an M18 shielded inductive proximity sensor rated for a 7 mm sensing distance and 0 to 5.6 mm setting distance. It provides a DC 2-wire NC output through a pre-wired 2 m oil-resistant PVC cable and operates from 12 to 24 VDC. The sensor detects ferrous metal using an iron 18 × 18 × 1 mm standard sensing object. Leakage current is 0.8 mA max., response frequency is 0.5 kHz, and differential travel is 10% max. of sensing distance. A red operation indicator is provided, together with surge suppression, load short-circuit protection, and IP67 protection. The E2E-X7D2-N is part of the Proximity sensor portfolio from Omron industrial sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X7D2-N 2M |
Omron E2E-X7D2-N 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting | Shielded |
| Sensing Distance | 7 mm |
| Setting Distance | 0 to 5.6 mm |
| Output Configuration | DC 2-wire |
| Operation Mode | NC |
| Connection | Pre Wired, Length 2M |
| Cable Specifications | PVC (oil-resistant) |
| Power Supply Voltage | 12 to 24 VDC |
| Standard Target | Iron, 18 × 18 × 1 mm |
| Leakage Current | 0.8 mA max. |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 0.5 kHz |
| Indicator | Operation indicator (red) |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±15% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
The Omron E2E-X7D2-N 2M Proximity Sensor features an M18 shielded inductive sensing arrangement with a 7 mm sensing distance and 0 to 5.6 mm setting distance. A DC 2-wire circuit provides NC operation, and the sensor is supplied with a pre-wired 2 m oil-resistant PVC cable for a 12 to 24 VDC supply. Ferrous metal is the specified detectable object, with an iron 18 × 18 × 1 mm standard sensing target. Leakage current is 0.8 mA max. and response frequency is 0.5 kHz, while differential travel is 10% max. of sensing distance. A red indicator shows operation. Surge suppression and load short-circuit protection are specified for the control and diagnostic output.
Operating temperature is -25 to 70°C, storage temperature is -40 to 85°C, and the humidity range is 35% to 95% without condensation. Temperature influence is ±15% max. of sensing distance at 23°C within the -25 to 70°C range. Insulation resistance is 50 MΩ min. at 500 VDC, with dielectric strength of 1000 VAC for 1 minute. Voltage influence is ±1% max. within rated voltage ±15%. The model is rated IP67. For an M18 E2E sensor retaining the 7 mm sensing distance, DC 2-wire circuit, and 2 m oil-resistant cable while changing the switching state to NO, see E2E-X7D1-N 2M.
