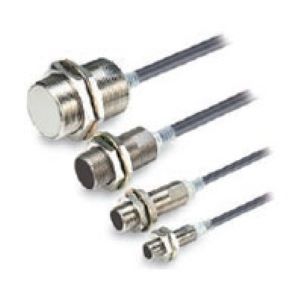

Omron E2E-X7D1-U 2M Proximity Sensor
Omron E2E-X7D1-U 2M is an M18 shielded inductive proximity sensor with a 7 mm sensing distance and 0 to 5.6 mm setting distance. It provides a DC 2-wire NO output through a pre-wired 2 m PUR cable and operates from 12 to 24 VDC. Ferrous metal is the specified detection target, with an iron 18 × 18 × 1 mm standard sensing object. Response frequency is 0.5 kHz, while control output is rated from 3 to 100 mA with a 50 mA diagnostic output. Red and green indicators show operation and setting status. The E2E-X7D1-U 2M is included among M18 DC 2-wire proximity sensors from Omron automation sensing solutions.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X7D1-U 2M |
Omron E2E-X7D1-U 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 7 mm |
| Setting Distance | 0 to 5.6 mm |
| Output configuration | DC 2 Wire |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Cable specifications | PUR |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 18 × 18 × 1 mm |
| Response Frequency | 0.5 kHz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 3 to 100 mA, Diagnostic output: 50 mA |
| Indicators | Operation indicator (red) and setting indicator (green) |
| Materials | Nickel-plated brass, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 130 g |
The Omron E2E-X7D1-U 2M Proximity Sensor uses an M18 shielded inductive sensing body with a 7 mm sensing distance and a 0 to 5.6 mm setting distance. It provides a DC 2-wire NO output through a pre-wired 2 m PUR cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 18 × 18 × 1 mm standard sensing object. Response frequency is 0.5 kHz. Control output is rated from 3 to 100 mA, while the diagnostic output is rated 50 mA. Red and green indicators show operation and setting status, and surge suppression with load short-circuit protection is specified.
Operating conditions for the E2E-X7D1-U extend from -25 to 70°C, while storage covers -40 to 85°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are specified. The shielded M18 format combines a 7 mm sensing range with DC 2-wire normally open switching. Its PUR pre-wired cable supports fixed machine connections where cable durability is required. Nickel-plated brass, PBT, zinc-plated iron, and PVC are listed among the construction materials. The diagnostic output provides an additional status signal alongside the main control output. For a closely related E2E M18 model with the same 7 mm sensing distance but an oil-resistant PVC cable, see E2E-X7D1S 2M.
