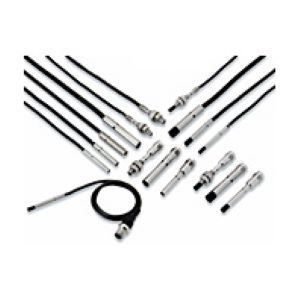

E2E-S05S12-WC-B2 2M: PVC Cable Proximity Sensor in Chennai
The technical specifications for the Omron E2E-S05S12-WC-B2 2M are:
- Sensor Head (Dia): M5 (5mm)
- Installation: Flush | Shielded
- Sensing Distance: 1.2 mm
- Connection Method: Pre-wired Models (2 m)
- Cable Specifications: PVC (Oil-resistant)
- Switching: NC
- Output: PNP
- Response Frequency: 4 kHz
- Power Supply Voltage: 10 to 30 VDC
Omron E2E-S05S12-WC-B2 2M PVC Cable Proximity Sensor Technical Specification:
| Sensor Head (Dia) | M5 (5mm) |
| Installation | Flush | Shielded |
| Sensing Distance | 1.2 mm |
| Connection Method | Pre-wired Models (2 m) |
| Cable Specifications | PVC (Oil-resistant) |
| Switching | NC |
| Output | PNP |
| Power source | DC Three-wires models |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 4 × 4 × 1 mm |
| Response frequency | 4 kHz |
| Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)) |
| Current consumption | 10 mA max. |
| Indicator | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection. |
| Ambient air temperature | Operation and storage: −25 to 70°C (with no icing or condensation) |
| Ambient humidity | Operation and storage: 35% to 95% (with no condensation) |
| Temperature influence | ±15% max. of sensing distance at 23°C within a temperature range of −25 to 70°C |
| Voltage influence | ±2.5% max. of sensing distance at the rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Sensing Surface | Heat-resistant ABS |
If you’re searching for the Omron E2E-S05S12-WC-B2 2M PVC Cable Proximity Sensor in Chennai? you’ve landed in the right place. The Proximity Sensor boasts an M5 (5mm) sensor head, flush and shielded installation, 1.2 mm sensing distance, and comes with pre-wired models (2 m) for easy connection. Operating on DC Three-wire models, this sensor has a PVC oil-resistant cable, NC switching, PNP output, and functions with a power supply voltage of 10 to 30 VDC. Check with IndMALL Automation for the best prices.
