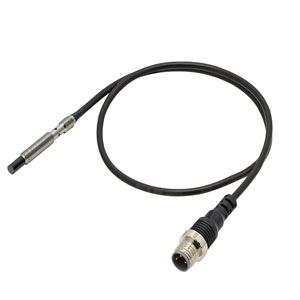

E2E-S04N02-CJ-B2 0.3M - Omron 2mm PNP Quick-connect Sensor
Technical Specifications of Omron 2mm PNP Quick-connect Sensor E2E-S04N02-CJ-B2 0.3M:
| Brand | Omron |
| Product Type | Proximity Sensor |
| Product | E2E-S04N02-CJ-B2 0.3M |
Omron 2mm PNP Quick-connect Sensor E2E-S04N02-CJ-B2 0.3M Technical Specifications:
| Specification | Value |
|---|---|
| Sensing head size | M4 |
| Mounting type | Unshielded |
| Sensing distance | 2 mm |
| Setting distance | 0 to 1.4 mm |
| Response frequency | 3.5 kHz |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron, 6 × 6 × 1 mm |
| Connection method | M8 Pre-wired Connector Models (0.3 m) |
| Cable specifications | PVC (oil-resistant) |
| Differential distance | 15% max. of sensing distance |
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
| Current consumption | 10 mA max. |
| Control output (Switching capacity) | 50 mA max. |
| Control output (Residual voltage) | 2 V max. |
| Indicator | Operation indicator (yellow) |
| Control output (Output type) | PNP open collector |
| Protective circuit | Output short-cut protection Output reverse polarity protection Power supply reverse polarity protection Surge suppressor |
| Operation mode | NC |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Ambient temperature (Operating/Storage) | -25 to 70 ℃/-25 to 70 ℃ |
| Ambient humidity (Operating/Storage) | 35 to 95 %/35 to 95 % |
| Temperature influence | ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength | Between charged parts and the case: 500 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Material | Case: SUS303 (EN1.4305) Sensing surface: Heat-resistant ABS resin Cable: PVC |
| Weight | Approx. 20 g |
Talk to Our Engineer for Omron 2mm PNP Quick-connect Sensor, E2E-S04N02-CJ-B2 0.3M with exclusive offers. In-depth Technical Analysis of E2E-S04N02-CJ-B2 0.3M includes Iron, 6 × 6 × 1 mm, M8 Pre-wired Connector Models (0.3 m), 15% max. of sensing distance, 10 to 30 VDC ripple (p-p) 10% included. Moreover, it features 10 mA max., 50 mA max., 2 V max.. Don't Miss Out on a Quote for your requirement of Omron 2mm PNP Quick-connect Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
