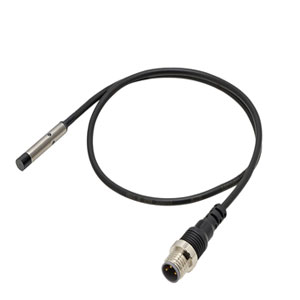

Omron E2E-C06N04-CJ-C2 0.3M Small-diameter Proximity Sensor
Omron E2E-C06N04-CJ-C2 0.3M features a 6.5 mm diameter unshielded body with 4 mm sensing and DC 3-wire NPN NC output. Connection is made through an M8 pre-wired 3-pin connector, and the setting distance extends from 0 to 2.8 mm. Operating voltage is 10 to 30 VDC with a 3 kHz response frequency. The E2E-C06N04-CJ-C2 0.3M belongs to the E2E Small-diameter Series, while similar NPN configurations appear in the broader small-diameter NPN proximity sensor range supplied through Omron Automation Sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-C06N04-CJ-C2 0.3M |
Omron E2E-C06N04-CJ-C2 0.3M Small-diameter Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | 6.5 dia. |
| Mounting type | Unshielded |
| Sensing Distance | 4 mm |
| Setting Distance | 0 to 2.8 mm |
| Output configuration | DC 3-wire NPN |
| Operation Mode | NC |
| Connection Method | M8 Pre-wired Connector, 3-pin |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 12 × 12 × 1 mm |
| Response Frequency | 3 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: −25 to 70°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 200 mA max. (60 to 70°C: 100 mA) 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305), Heat-resistant ABS, SUS430 (EN 1.4016), SUS303 (EN 1.4305) , Polyvinyl chloride (PVC). |
| Weight | Approx. 25 g |
The Omron E2E-C06N04-CJ-C2 0.3M Small-diameter Proximity Sensor features a 6.5 mm diameter unshielded sensing body with a 4 mm sensing distance and a setting range from 0 to 2.8 mm. A DC 3-wire NPN circuit provides normally closed output through an M8 pre-wired 3-pin connector. Operating voltage is 10 to 30 VDC with a 3 kHz response frequency. Ferrous metal is specified using an iron 12 × 12 × 1 mm standard object. Control output is rated at 200 mA max. from -25 to 60°C and 100 mA max. from 60 to 70°C, with a 2 V max. voltage drop. Output reverse polarity, power supply reverse polarity, surge, and load short-circuit protection are included. SUS303, heat-resistant ABS, SUS430, and PVC are listed among the construction materials.
For applications specifying an Omron NPN proximity sensor with unshielded 4 mm sensing, NC switching, and compact M8 pre-wired connection, the corresponding model is the E2E-C06N04-CJ-C2. Operation and storage temperatures extend from -25 to 70°C, with IEC 60529 IP67 and an oil-resistant in-house specification. Its format also suits Omron small diameter proximity sensor, Omron 4 mm proximity sensor, Omron unshielded proximity sensor, and Omron pre-wired proximity sensor requirements. The 3 kHz response frequency supports relatively fast switching while retaining the longer unshielded sensing range. For the same 6.5 mm diameter unshielded 4 mm sensing and connector arrangement with PNP NC output, see E2E-C06N04-CJ-B2 0.3M.
