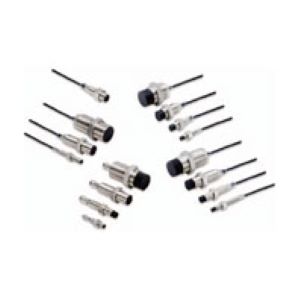

Omron E2B-S08LS02-MC-C2 Proximity Sensor
Omron E2B-S08LS02-MC-C2 is an M8 shielded inductive proximity sensor with a 2 mm sensing distance and long-body construction. It uses a DC 3-wire NPN output with NC operation through a 3-pin M8 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an 8 × 8 × 1 mm standard sensing object. Response frequency is 1,500 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation LED, reverse-polarity protection, surge suppression, short-circuit protection, and IP67 protection are specified. The E2B-S08LS02-MC-C2 is listed under M8 proximity sensors from Omron industrial sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-S08LS02-MC-C2 |
Omron E2B-S08LS02-MC-C2 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting | Shielded |
| Sensing Distance | 2 mm |
| Body Length | Long Body |
| Output | DC 3-wire |
| Output Configuration | NPN |
| Operation Mode | NC |
| Connection | M8 Connector (3-pin) |
| Power Supply Voltage | 10 to 30 VDC |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard Sensing Object | 8 × 8 × 1 mm |
| Response Frequency | 1,500 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ºC (with no icing or condensation) |
| Ambient Humidity Range | Operation and Storage: 35 to 95% |
| Voltage Influence | ±1% max. of sensing distance in 24 VDC ±15% |
| Standard And Listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) |
| Material Case | Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).) |
| Material Sensing Surface | PBT |
| Material Cable | Standard cable is 4 mm dia. PVC |
| Material Clamping Nut | Brass-nickel plated |
The Omron E2B-S08LS02-MC-C2 Proximity Sensor combines an M8 shielded inductive sensing structure with a 2 mm sensing distance and long-body construction. It uses a DC 3-wire NPN output with NC operation through a 3-pin M8 connector and operates from a 10 to 30 VDC supply. Ferrous metal is specified as the detectable object, with an 8 × 8 × 1 mm standard sensing object. Response frequency is 1,500 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow LED provides operation indication. Output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, and short-circuit protection are included in the specified protection circuit.
Operating conditions for the E2B-S08LS02-MC-C2 cover -25 to 70°C without icing or condensation, with humidity from 35% to 95%. Voltage influence is ±1% max. of sensing distance at 24 VDC ±15%. IP67 according to IEC 60529 and EMC according to EN60947-5-2 are specified. Stainless steel is listed for the case, PBT for the sensing surface, and brass with nickel plating for the clamping nut. The supplied cable specification is 4 mm diameter PVC. For another NPN NC E2B sensor with long-body construction, an M12 connector, and an 8 mm sensing distance, see E2B-M12LN08-M1-C2.
