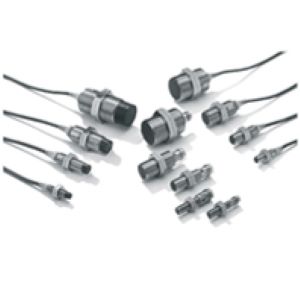

Omron E2A-S08LN04-M3-C1 Proximity Sensor
Omron E2A-S08LN04-M3-C1 has an M8 unshielded cylindrical body rated for a 4 mm sensing distance and 0 to 3.2 mm setting range. The long-body sensor uses DC 3-wire NPN NO output through a 4-pin M8 connector and operates from a 12 to 24 VDC supply. Response frequency reaches 1,000 Hz, and the control output handles 200 mA max. at 32 VDC max. with a 2 V maximum voltage drop. A yellow operation indicator and supply reverse-polarity, surge, and short-circuit protection are specified. Find the E2A-S08LN04-M3-C1 within NPN proximity sensors from Omron Automation Products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2A-S08LN04-M3-C1 |
Omron E2A-S08LN04-M3-C1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M8 |
| Mounting type | Unshielded |
| Sensing Distance | 4 mm |
| Setting Distance | 0 to 3.2 mm |
| Output configuration | DC, 3-wire, NPN |
| Operation Mode | NO |
| Body Length | Long body |
| Connection Method | M8 Connector (4 pin) |
| Response Frequency | 1,000 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operating: −40°C to 70°C, Storage: −40°C to 85°C |
| Degree of Protection | IP67 after IEC 60529, IP69k after DIN 40050, EMC after EN60947-5-2 |
| Control Output | 200 mA max. (32 VDC max.), 2 V max. |
| Indicators | Operation indicator (Yellow LED) |
| Materials | Stainless steel or brass-nickel plated, PBT, PVC, Brass-nickel plated |
| Weight | Approx. 15 g |
The Omron E2A-S08LN04-M3-C1 Proximity Sensor is built with an M8 cylindrical unshielded inductive sensing face rated for 4 mm sensing and a 0 to 3.2 mm setting range. Its long-body configuration uses DC 3-wire NPN normally open switching through a 4-pin M8 connector. The sensor operates from 12 to 24 VDC and has a response frequency of 1,000 Hz. Control output is rated 200 mA max. at 32 VDC max. with a 2 V maximum voltage drop. A yellow operation indicator is included. Supply reverse-polarity protection, surge suppression, and short-circuit protection support the electrical circuit. This format suits compact NPN proximity sensor installations requiring removable M8 wiring.
The E2A-S08LN04-M3-C1 supports operation from -40 to 70°C and storage from -40 to 85°C. IP67 according to IEC 60529 and IP69K according to DIN 40050 are specified, together with EMC conformity to EN60947-5-2. Construction materials include stainless steel or brass-nickel-plated parts, PBT, and PVC. The unshielded M8 body provides the specified 4 mm sensing range in a long threaded housing. For an E2A model with an M8 body, 2 mm sensing distance, PNP NO output, and M12 connector, see E2A-M08LS02-M1-B1.
