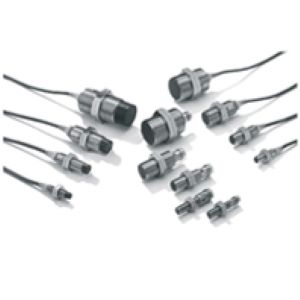

E2A-S08KS02-WP-B2 2M: PNP NC Inductive Proximity Sensor
The Technical specifications of Omron PNP NC Inductive Proximity Sensor E2A-S08KS02-WP-B2 2M:
- Sensor Head: M8
- Mounting type: Flush/Shielded
- Sensing Distance: 2 mm
- Output type: PNP
- Switching: NC
- Power source: DC, 3-wire
- Connection method: Pre-Wired
- Material housing: Stainless steel
Omron PNP NC Inductive Proximity Sensor E2A-S08KS02-WP-B2 2M Technical Specifications:
Sensor Head | M8 |
Mounting type | Flush |
Sensing Distance | 2 mm |
Output type | PNP |
Switching | NC |
Power source | DC, 3-wire |
Connection method | Pre Wired, Cable Length 2M |
Standard sensing object | 8 × 8 × 1 mm |
Barrel Length | Short body |
Differential travel | Differential travel 10% max. of sensing distance |
Insulation resistance | 50 MΩ min. (at 500 VDC) between current carry parts and case |
Voltage influence | ±1% max. of sensing distance in rated voltage range ±15% |
Ambient humidity | Operating: 35% to 95%, Storage: 35% to 95% |
Overall Length | 40 mm |
Thread Length | 27 mm |
Ambient humidity | Operating: 35% to 95%, Storage: 35% to 95% |
Switching Frequency | 1.5kHz |
Cable Specifications | PVC |
Power Supply Voltage | 12-24 VDC |
Ambient air temperature | Operating: −40°C to 70°C, Storage: −40°C to 85°C (with no icing or condensation) |
Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
Current consumption | 10 mA max |
Indicator | Operation indicator (Yellow LED) |
Degree of protection | IP67/IP69K |
Material housing | Stainless steel |
Get the Omron E2A-S08KS02-WP-B2 2M PNP NC Inductive Proximity Sensor at IndMALL Automation at competitive prices. This sensor comes with an M8 sensor head, flush and shielded mounting, and a 2mm sensing distance. It’s powered by a DC 3-wire system and features a pre-wired connection for ease of installation, housing is made of durable stainless steel, short barrel length, and an overall length of 40mm, with a thread length of 27mm. It responds rapidly at 1,500 Hz and comes with a PVC cable. This sensor is ideal for various industrial applications requiring precise and reliable proximity detection.
