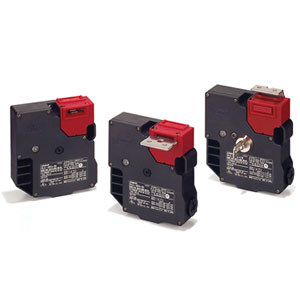

Omron D4JL-2NFG-C5 Safety Door Switch
Omron D4JL-2NFG-C5 is a guard lock safety door switch with a special release key for controlled access to protected machine areas. It uses a solenoid lock with mechanical release and a 2NC/1NO + 2NC/1NO contact configuration for guard and lock monitoring. A Type 2 low-level coded interlock supports mechanical guard detection, while the G1/2 conduit provides the cable-entry connection. The switch carries IP67 protection, operates from 0.05 to 0.5 m/s and provides 60 N minimum direct opening force with 15 mm minimum travel. The D4JL-2NFG-C5 belongs to the D4JL series within the guard lock safety switch range from Omron machine safety products.
| Brand | Omron |
| Product Type | Safety Door Switch |
| Model Number | D4JL-2NFG-C5 |
Omron D4JL-2NFG-C5 Safety Door Switch - Technical Specifications
| Specification | Value |
|---|---|
| Type | Special release key |
| Lock and release types | Solenoid lock Mechanical release |
| Contact configuration | 2NC/1NO+2NC/1NO |
| Conduit outlet/Connector | G1/2 |
| Interlock type | Type 2 |
| Coding level | Low level coded |
| Degree of protection | IP67 |
| Operating speed | 0.05 to 0.5 m/s |
| Direct opening force | 60 N min |
| Direct opening travel | 15 mm min |
| Contact resistance | 25 mΩ max. |
| Rated insulation voltage (Ui) | 300 V |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΩ min. |
| Contact gap | 2 × 2 mm min |
| Vibration resistance | Malfunction 10 to 55 Hz, 0.75 mm single amplitude |
| Shock resistance | Destruction 1,000 m/s2 min. Malfunction 80 m/s2 min. |
| Ambient operating temperature | −10 to +55°C |
| Ambient operating humidity | 95% max |
| Weight | Approx. 650 g |
The Omron D4JL-2NFG-C5 Guard Lock Safety Door Switch uses a special release key together with a solenoid lock and mechanical release arrangement for controlled machine access. Its 2NC/1NO + 2NC/1NO contact configuration provides switching for guard and lock monitoring. A Type 2 low-level coded interlock supports mechanical guard detection, while IP67 enclosure protection and a G1/2 conduit connection support industrial installation. Operating speed ranges from 0.05 to 0.5 m/s, with 60 N minimum direct opening force and 15 mm minimum travel.
Electrical characteristics include 25 mΩ maximum contact resistance, a 300 V rated insulation voltage, 100 MΩ minimum insulation resistance and a 2 × 2 mm minimum contact gap. Rated frequency is 50/60 Hz. Malfunction vibration resistance covers 10 to 55 Hz at 0.75 mm single amplitude. Shock resistance reaches 1,000 m/s² minimum for destruction and 80 m/s² minimum for malfunction. The operating temperature extends from −10 to +55°C, ambient humidity is rated up to 95%. These characteristics support protective-door interlocking where a dedicated release method is required for controlled access. For another D4JL model with the same supplied special release key, locking arrangement and contact configuration, the D4JL-2NFG-D5 provides the closest related configuration.
