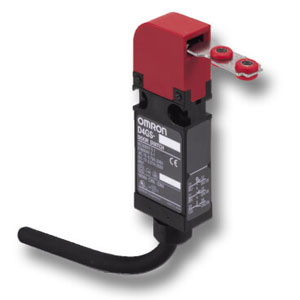

Omron D4GS-N1T-5 Safety Door Switch
Omron D4GS-N1T-5 is a slim safety door switch designed to detect the position of machine guards and protective access doors. Its compact construction supports installations where mounting space is limited, while the Type 2 low-level coded interlock provides mechanical guard-position monitoring. The switch uses a direct opening mechanism with a 60 N minimum opening force and provides IP67 protection for industrial machine safety applications. It supports guard movement speeds from 0.1 to 0.5 m/s and uses an integrated cable connection. The D4GS-N1T-5 belongs to the D4GS series within the slim safety door switch range from Omron machine safety products.
| Brand | Omron |
| Product Type | Safety Door Switch |
| Model Number | D4GS-N1T-5 |
Omron D4GS-N1T-5 Safety Door Switch - Technical Specifications
| Specification | Value |
|---|---|
| Interlock type | Type 2 |
| Coding level | Low level coded |
| Degree of protection | IP67 |
| Operating speed | 0.1 to 0.5 m/s |
| Direct opening force | 60 N min |
| Direct opening travel | 10 mm min |
| Contact resistance | 300 mΩ max. (with 1 m cable) ; 500 mΩ max. (with 3 m cable); 700 mΩ max. (with 5 m cable) |
| Rated insulation voltage (Ui) | 250 V |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΩ min. |
| Contact gap | 2 × 2 mm min |
| Vibration resistance | Malfunction 10 to 55 Hz, 0.35 mm single amplitude |
| Shock resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min |
| Ambient operating temperature | −30 to 70°C (with no icing) |
| Ambient operating humidity | 95% max |
| Cable | UL2464 No. 22 AWG, finishing O.D.: 7.2 mm |
| Weight | Approx. 120 g |
The Omron D4GS-N1T-5 Safety Door Switch uses a Type 2 interlock with low-level coded operation and provides IP67 protection. It supports an operating speed of 0.1 to 0.5 m/s and has a direct opening force of 60 N minimum with 10 mm minimum direct opening travel. The minimum contact gap is 2 × 2 mm, while the rated frequency is 50/60 Hz. These mechanical characteristics support defined guard-position detection and contact opening when the connected protective door is operated.
Electrical specifications include a 250 V rated insulation voltage and 100 MΩ minimum insulation resistance. Contact resistance is 300 mΩ maximum with a 1 m cable, 500 mΩ maximum with a 3 m cable, and 700 mΩ maximum with a 5 m cable. Malfunction vibration resistance covers 10 to 55 Hz at 0.35 mm single amplitude. Shock resistance is rated at 1,000 m/s² minimum for destruction and 300 m/s² minimum for malfunction. Operating temperature extends from −30 to 70°C with no icing, with ambient humidity up to 95%. Connection uses a UL2464 No. 22 AWG cable with a 7.2 mm finished outer diameter. For a closely related configuration in the same slim safety switch family, see the D4GS-N1T model.
