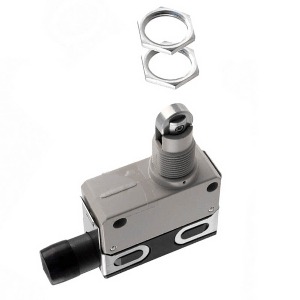

Omron D4E-1A10N Limit Switch
Omron D4E-1A10N is a general-load limit switch with an 11 mm dia. × 4.7 mm stainless sintered-alloy roller plunger. It uses SPDT contacts and a snap-action mechanism, operates at 50/60 Hz, and carries IP67 protection. Maximum contact resistance is 15 mΩ, while mechanical durability is ten million operations minimum. The D4E-1A10N Snap-Action Roller Plunger belongs to the D4E-N Series within the Omron Snap-Action Plunger Switch Range from Omron D4E-N Product Range. Its roller dimensions, stainless sintered-alloy construction, SPDT contacts, snap action, general-load classification, and IP67 protection define this model.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4E-1A10N |
Omron D4E-1A10N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Ctuator | Roller plunger 11 dia. x 4.7 Stainless sintered alloy rollers |
| Contact Form | SPDT |
| Frequency | 50/60 Hz |
| Load | General load |
| Inrush Current | NC: 10 A max. NO: 10 A max. |
| Ambient Temperature | Operating: -10 to 80 ℃ |
| Ambient Humidity | 35 to 95% RH |
| Shock Resistance | Destruction: 1000 m/s 2 Malfunction: 300 m/s 2 |
| Degree Of Protection | IP67 |
| Contact Resistance Initial Value | 15 mΩ max. |
| Durability | Electrical: 5,000,000 operations min. (10 mA at 24 VDC) Mechanical: 10 million operations min. |
| Operating Mechanism | Snap action |
The Omron D4E-1A10N Limit Switch uses an 11 mm dia. × 4.7 mm stainless sintered-alloy roller plunger with an SPDT contact form and snap-action mechanism. It is classified for general load and operates at 50/60 Hz. Maximum inrush current is 10 A for NC and 10 A for NO. Maximum contact resistance is 15 mΩ, while IP67 protection is specified. Electrical durability is five million operations minimum under the source-stated 10 mA at 24 VDC condition, and mechanical durability is ten million operations minimum. Operating temperature ranges from -10 to 80°C, with relative humidity from 35 to 95%.
Destructive shock resistance is listed at 1,000 m/s² and malfunction shock resistance at 300 m/s². The source does not append max. or min. wording to these shock values, so none is added. The 10 mA at 24 VDC value appears only within the electrical-durability condition and is not presented as a normal load rating. The structured row also does not provide insulation resistance, operating speed, operation frequency, conduit, or mounting details. The strongest model terms are D4E-N Series, roller plunger, 11 × 4.7 mm stainless sintered-alloy roller, SPDT contacts, snap action, general load, 15 mΩ contact resistance, IP67, and ten-million-operation mechanical durability. For a related D4E-N roller-lever model, see D4E-1G20N.
