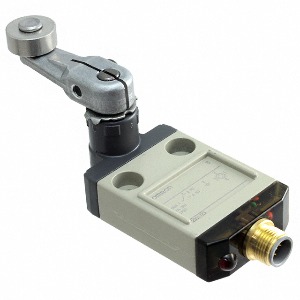

Omron D4CC-3024 Limit Switch
Omron D4CC-3024 is a compact limit switch with a stainless steel roller lever for mechanical position detection in industrial machinery. The lever actuator suits cams, slides, conveyors, and moving targets that sweep across the roller, helping provide smooth and repeatable switching. Its SPDT contact form supports changeover control for general loads, while IP67 protection and operation from -10 to 70°C suit demanding factory conditions. The D4CC-3024 belongs to the D4CC Series within the compact roller lever limit switch range from Omron industrial automation products for reliable machine position, travel, and end-of-stroke detection.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4CC-3024 |
Omron D4CC-3024 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | General-purpose Limit switches |
| Ctuator | Roller lever 17.5 dia. x 7 Sintered stainless steel roller |
| Contact Form | SPDT |
| Electrical Ratings | 1 A at 30 VAC |
| Load | General load |
| Inrush Current | NC: 5 A max. NO: 2.5 A max. |
| Ambient Temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient Humidity | 35 to 95% RH |
| Shock Resistance | Destruction: 1,000 m/s 2 max. Malfunction: 500 m/s 2 max. |
| Degree Of Protection | IP67 |
| Contact Resistance Initial Value | 100 mΩ max. |
| Durability | Electrical: 200,000 operations min. (1 A at 125 VAC) Mechanical: 10 million operations min. |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5 mm double amplitude |
The Omron D4CC-3024 Limit Switch uses a 17.5 mm × 7 mm sintered stainless steel roller lever for mechanical position detection on industrial machinery. The roller lever is suited to cams, slides, conveyors, and moving targets that actuate the switch across a defined travel path, helping reduce sliding contact during repeated operation. Its SPDT contact form provides changeover switching for general loads, with a listed rating of 1 A at 30 VAC. Inrush current capability reaches 5 A maximum on the NC side and 2.5 A maximum on the NO side. IP67 protection supports use around dust, water, and common industrial contaminants.
The D4CC-3024 operates from -10 to 70°C with 35 to 95% relative humidity. Mechanical durability is specified at 10 million operations minimum, while electrical durability reaches 200,000 operations minimum at 1 A, 125 VAC. Initial contact resistance is 100 mΩ maximum. Destructive shock resistance reaches 1,000 m/s² maximum and malfunction shock resistance reaches 500 m/s² maximum. Malfunction vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. These characteristics support reliable roller-lever position sensing where compact construction, sealed protection, and moderate control loads are required. For another D4CC roller-lever model from the same compact limit switch family, see the D4CC-1024 model.
