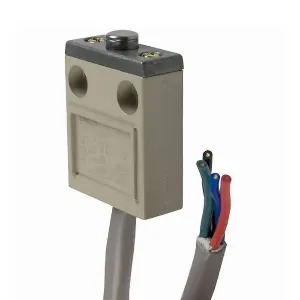

Omron D4CC-2031 Limit Switch
Omron D4CC-2031 Limit Switch is a general-purpose limit switch with a sealed 10 mm stainless-steel pin plunger and SPDT contact form. The model is listed for general load with 1 A at 125 VAC. NC current is specified as 20 A max. and NO current as 10 A max. The listed operating speed is 0.1 mm/s to 0.5 m/s, while insulation resistance is 100 MΩ min. at 500 VDC. IP67 protection, pollution degree 3 according to EN60947-5-1, -10 to 70°C operating temperature with no icing, and 35 to 95% RH are also specified. The D4CC-2031 belongs to the D4CC Series within the Omron Limit Switch range from Omron.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4CC-2031 |
Omron D4CC-2031 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | General-purpose Limit switches |
| Ctuator | Sealed pin plunger 10 dia. Stainless steel plunger |
| Contact Form | SPDT |
| Electrical Ratings | 1 A at 125 VAC |
| Load | General load |
| Inrush Current | NC: 20 A max. NO: 10 A max. |
| Ambient Temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient Humidity | 35 to 95% RH |
| Pollution Degree | 3 (EN60947-5-1) |
| Shock Resistance | Destruction: 1,000 m/s 2 max. Malfunction: 500 m/s 2 max. |
| Degree Of Protection | IP67 |
| Permissible Operating Speed | 0.1 mm/s to 0.5 m/s |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
Omron D4CC-2031 Limit Switch is a general-purpose limit switch with a sealed 10 mm stainless-steel pin plunger and SPDT contact form. The model is listed for general load with 1 A at 125 VAC. NC current is specified as 20 A max. and NO current as 10 A max. The listed operating speed is 0.1 mm/s to 0.5 m/s, while insulation resistance is 100 MΩ min. at 500 VDC. These values identify the D4CC-2031 through sealed pin-plunger construction, plunger size and material, SPDT contact arrangement, load classification, current limits, operating speed, and insulation resistance. The sealed designation belongs specifically to the actuator description provided for this configuration.
The D4CC-2031 has IP67 protection, pollution degree 3 according to EN60947-5-1, an operating temperature range of -10 to 70°C with no icing, and humidity of 35 to 95% RH. Shock specifications are 1,000 m/s² max. for destruction and 500 m/s² max. for malfunction. These figures provide the listed environmental limits without adding durability or contact-resistance values that are absent from this row. The D4CC-1001 in the same uploaded batch also uses a 10 mm stainless-steel pin plunger and SPDT contacts, but its actuator description does not include sealed. See the D4CC-1001.
