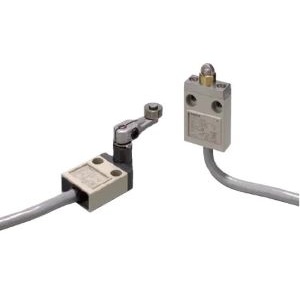

Omron D4C-1424 Limit Switch
Omron D4C-1424 is a D4C Series limit switch with a high-sensitivity roller lever for detecting small mechanical movement and position changes. The roller lever provides rolling contact with moving targets, while the high-sensitivity actuator configuration is suited to applications where limited target travel must operate the switch. This model supports standard loads rated at 5 A at 250 VAC and 4 A at 30 VDC and includes a 3 m VCTF cable for prewired connection. The D4C-1424 belongs to the D4C Series within the high-sensitivity roller lever switch range from Omron automation products for machine position, motion, and end-of-travel detection where short actuator movement and a 3 m cable are required.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4C-1424 |
Omron D4C-1424 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Electrical Ratings | 5 A at 250 VAC, 4 A at 30 VDC |
| Load | Standard load |
| Cable Specifications | VCTF cable |
| Cable Length | 3 m |
| Actuator | Roller lever, high-sensitivity |
The Omron D4C-1424 Limit Switch uses a high-sensitivity roller lever for detecting small mechanical movement and position changes. The roller lever provides rolling contact with moving targets and is specifically identified in the supplied configuration as a high-sensitivity actuator. This model is intended for standard-load switching and is rated at 5 A at 250 VAC and 4 A at 30 VDC. A prewired 3 m VCTF cable is included, giving a fixed cable connection between the sensing point and the control wiring. The combination of roller-lever actuation and a 3 m cable is the main configuration information provided for this model.
The high-sensitivity roller lever distinguishes the D4C-1424 from D4C versions using center roller levers, pin plungers, or sealed roller plungers. Its selection is therefore mainly based on actuator response, target movement, electrical rating, and required cable length. The 3 m VCTF cable can be considered where the wiring point is relatively close to the switch, while the standard-load rating defines the supported electrical range. No additional durability, shock, IP rating, or temperature values are specified for this row, so those values are not added here. For a related D4C model with the same 3 m VCTF cable and electrical ratings but a center roller lever, see the D4C-1460 model.
