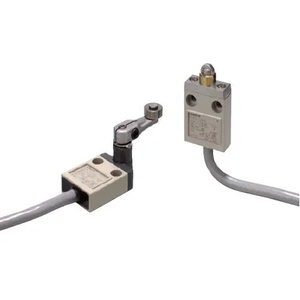

Omron D4C-1224 Limit Switch
Omron D4C-1224 is a compact enclosed limit switch with a high-sensitivity roller lever for precise machine position and travel detection. The sensitive lever actuator suits applications where small mechanical movement must produce reliable switching, including conveyors, machine tools, and automated mechanisms. Electrical ratings of 5 A at 250 VAC and 4 A at 30 VDC support standard control loads, while a 3 m VCTF oil-resistant cable simplifies wiring in industrial equipment. The prewired cable also suits installations exposed to lubricants or limited connection space. The D4C-1224 belongs to the D4C Series within the high-sensitivity roller lever switch range from Omron industrial control products for accurate position and end-of-travel sensing.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4C-1224 |
Omron D4C-1224 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Electrical Ratings | 5 A at 250 VAC, 4 A at 30 VDC |
| Load | Standard load |
| Cable Specifications | VCTF oil- resistant cable |
| Cable Length | 3 m |
| Actuator | Roller lever, high-sensitivity |
The Omron D4C-1224 Limit Switch uses a high-sensitivity roller lever for precise machine position and travel detection. The sensitive lever actuator is suited to applications where relatively small mechanical movement must produce dependable switching, including conveyors, machine tools, automated mechanisms, and compact positioning systems. Electrical ratings of 5 A at 250 VAC and 4 A at 30 VDC support standard industrial control loads. The model is supplied with a 3 m VCTF oil-resistant cable, allowing the switch to be positioned away from the control point while keeping the field connection prewired and protected along the machine route.
The D4C-1224 is particularly relevant where actuator sensitivity, cable reach, and resistance to oil exposure are more important than adding unnecessary secondary specifications. Its roller lever provides rolling contact with moving targets, helping support repeatable mechanical actuation where direct plunger contact is not suitable. The 3 m cable can simplify installation on conveyors and machines where the control wiring is not immediately beside the sensing point. The supplied product information also identifies the model for mechanical positioning, automated systems, and machine-safety-related detection duties. These characteristics make it a practical D4C option for compact, prewired roller-lever sensing. For another D4C model using an R38 roller lever for general-load position detection, see the D4C-1620 model.
