Omron D4B-2A15N Limit Switch

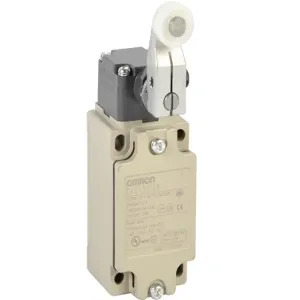

Omron D4B-2A15N Limit Switch combines a stainless-steel roller lever actuator with a 2NC contact form and slow-action operation. The conduit specification is G1/2 (PF1/2), operating speed is 1 mm/s to 0.5 m/s, and operation frequency is listed as 120 operations/minute mechanical and 30 operations/minute electrical. Electrical characteristics include 600 V rated insulation voltage, 50/60 Hz frequency, 25 mΩ max. contact resistance, and 100 MΩ min. insulation resistance. IP67 protection is specified, with an operating temperature range of -40 to 80°C with no icing and humidity of 95% max. The D4B-2A15N belongs to the D4B-N Series within the Omron Limit Switch range from Omron.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4B-2A15N |
Omron D4B-2A15N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Contact Form | 2NC |
| Shock Resistance | Destruction 1,000 m/s2 min. Malfunction 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΩ min. |
| Contact Gap | 2 × 2 mm min. (slow-action) 2 × 0.5 mm min. (snap-action) |
| Actuator | Roller lever (stainless steel roller) |
| Vibration Resistance | Malfunction 10 to 55 Hz, 0.75 mm single amplitude |
| Operating Mechanism | Slow-action |
| Conduit Size Conduit Openings | G1/2 (PF1/2) |
| Operating Speed | 1 mm/s to 0.5 m/s |
| Operating Frequency | Mechanical 120 operations/minute; Electrical 30 operations/minute |
| Contact Resistance | 25 mΩ max |
| Rated Insulation Voltage Ui | 600 V |
| Rated Frequency | 50/60 Hz |
| Ambient Operating Temperature | –40 to 80°C (with no icing) |
| Ambient Operating Humidity | 95% max |
| Weight | Approx. 250 g |
The Omron D4B-2A15N Limit Switch uses a roller lever with a stainless-steel roller, a 2NC contact form, and slow-action operation. The conduit specification is G1/2 (PF1/2). Its operating speed is 1 mm/s to 0.5 m/s. Operation frequency is specified as 120 operations/minute mechanical and 30 operations/minute electrical. Electrical characteristics include 600 V rated insulation voltage, 50/60 Hz frequency, 25 mΩ max. contact resistance, and 100 MΩ min. insulation resistance. The stainless-steel roller is part of the actuator description and should be read together with the slow-action mechanism and 2NC contacts. The 2NC contact arrangement and stainless-steel roller lever are paired with slow-action operation in this exact configuration.
The D4B-2A15N is rated IP67 and is specified for -40 to 80°C operation with no icing and humidity of 95% max. Malfunction vibration is 10 to 55 Hz at 0.75 mm single amplitude. Shock specifications are 1,000 m/s² min. for destruction and 300 m/s² min. for malfunction. These specifications describe the model through actuator, 2NC contact form, slow-action mechanism, G1/2 conduit, operating speed, operation frequency, resistance, voltage, temperature, humidity, vibration, shock, and IP67 protection. For a D4B-N Series model with an adjustable roller lever, 1NC/1NO contacts, and snap-action operation, see the D4B-2116N.
